Product Details:
|
| Product Name: | Weighing Module | Capacity: | 0.25-20t |
|---|---|---|---|
| Rated Output: | 2.0/3.0±10%mV/V | Non-linearity: | ≤0.03%F.S. |
| IP Class: | IP65(<500kg) IP68(≥500kg) | Material: | Stainless Steel/Alloy Steel |
| Highlight: | IP65 weighing sensor module,20t weighing sensor module,stainless steel module weighing |
||

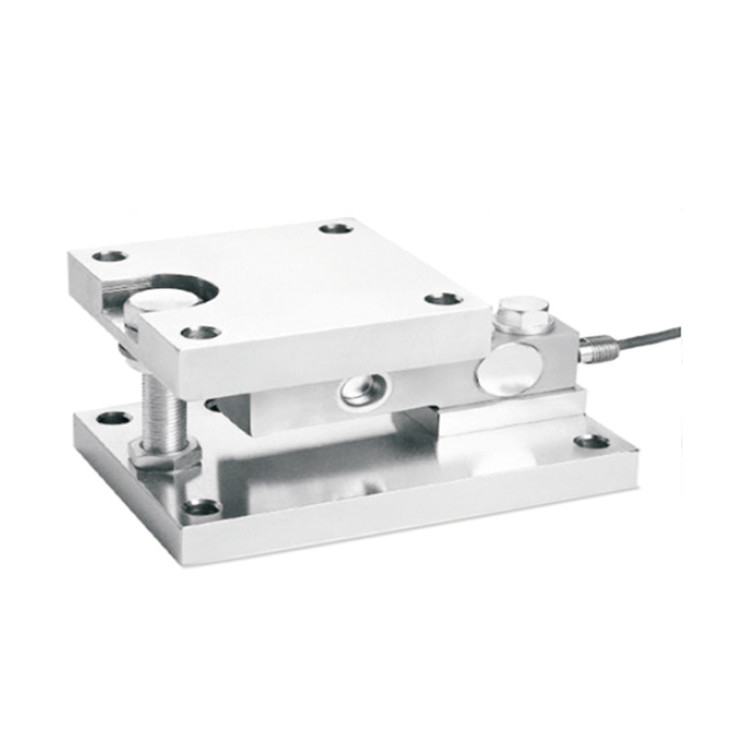

0.25-20t IP65 IP68 Stainless Steel Alloy Steel Weighing Module
1. Descriptions
0.25-20t IP65 IP68 Stainless Steel Alloy Steel Weighing Module FA801 is a model of our brand FIBOS FA8-Series, Weighing Module FA801 can be used to measure load ranges from 0.25t up to 20t capacity, its Rated output range is 2.0/3.0±10%mV/V, its Zero Balance range is ±0.02mV/V, its Material is Stainless/Alloy Steel, when its capacity <500kg it supports IP65 otherwise it supports IP68.
2. Specifications
| Product name | Weighing module |
| Capacity | 0.25-20t |
| Rated output | 2.0/3.0±10%mV/V |
| Zero Balance | ±0.02mV/V |
| Creep(30min) | ≤0.03%F.S. |
| Non-linearity | ≤0.03%F.S. |
| Hysteresis | ≤0.03%F.S. |
| Repeatability | ≤0.03%F.S. |
| Input resistance | 385±5Ω |
| Output resistance | 350±5Ω |
| Temp.effect on output | 0.025%F.S./10 ℃ |
| Temp.effect on zero | 0.025%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 10V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | ⌀5x6000mm |
| Material | Stainless/Alloy Steel |
| IP Class |
IP65(<500kg) IP68(≥500kg) |
3. Dimension
4. Application
0.25-20t IP65 IP68 Stainless Steel Alloy Steel Weighing Module FA801 could be used in asphalt mixes for the construction industry.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
