Product Details:
|
| Product Name: | Load Cell Amplifier | Display: | 2.8" TFT True Color / LCD Backlight |
|---|---|---|---|
| Comprehensive Accuracy: | <0.01%F.S. | Input Load: | Up To 4 Units Of 350Ω Sensors Can Be Connected |
| Material: | Plastic Shell | IP Class: | IP65 |
| High Light: | 4 unit hall effect sensor amplifier,plastic shell hall effect sensor amplifier,handheld sensor conditioner |
||

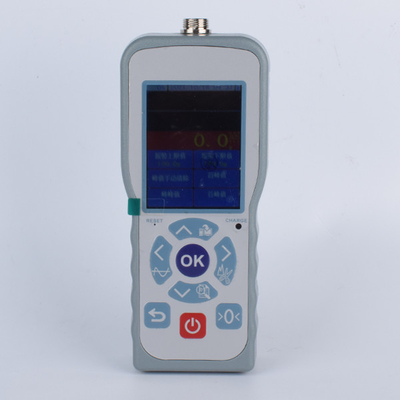

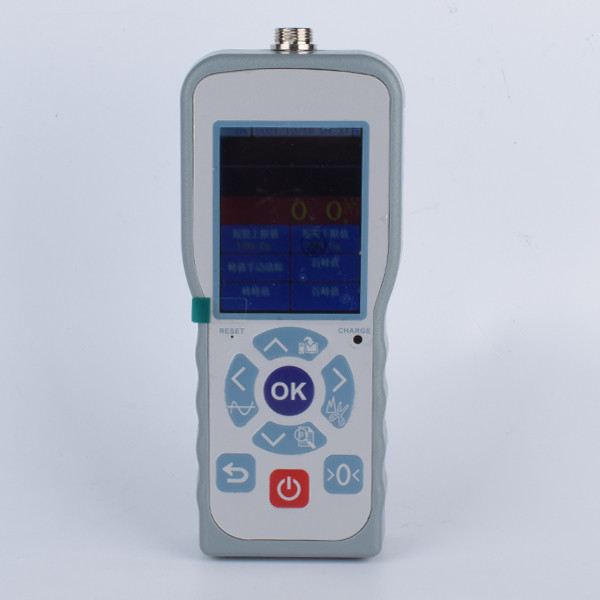

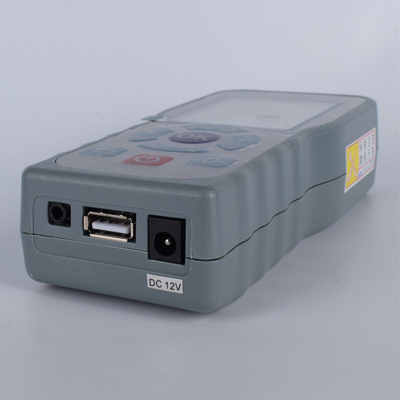

2.8" TFT True Color LCD Backlight <0.01%F.S. IP65 Plastic Shell Handheld Portable Instrument Load Cell Amplifier
1. Descriptions
2.8" TFT True Color LCD Backlight <0.01%F.S. IP65 Plastic Shell Handheld Portable Instrument Load Cell Amplifier FA06 is a model of our brand FIBOS Amplifier&instrument series, Plastic Shell Handheld Portable Instrument Load Cell Amplifier FA06 has plastic shell as its material, its Weight approximates 0.5kg, it supports IP65.
2. Specifications
| Product name | Load Cell Amplifier |
| Display | 2.8" TFT true color / LCD backlight |
| Accept sensor | -3.6~+3.6 mV/V |
| Input load | Up to 4 units of 350Ω sensors can be connected |
| Output specification | ±10V / 0~10V / 4~20mA |
| Temp.effect on output | ≤10ppm /℃ |
| Temp.effect on zero | ≤10μV /℃ |
| Excitation voltage | 5VDC |
| Operation temp range | -20~70℃ |
| Weight approx. | 0.5kg |
| Material | Plastic shell |
| IP Class | IP65 |
3. Dimension
4. Application
2.8" TFT True Color LCD Backlight <0.01%F.S. IP65 Plastic Shell Handheld Portable Instrument Load Cell Amplifier FA06 can be used to display values for sensors used in electronic bench scales.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
