Product Details:
|
| Product Name: | Load Cell Amplifier | Display Accuracy: | 1/10000 |
|---|---|---|---|
| Input Load: | Up To 2 Units Of 350~1000Ω Sensors Can Be Connected | Interface: | RS485/232 (one Of Two Options) (Free/Modbus RTU/ASCII Protocol) |
| Withstand Voltage: | One Minute At 2000V AC50/60Hz | Output Rate: | 10/40/640/1280 Times/sec |
| High Light: | rs485 strain gauge bridge amplifier,rs232 strain gauge bridge amplifier,2kv load cell amp |
||
Input Load 2 * 350~1000Ω Sensors 0.01%F.S. Support RS485/232 Load Cell Amplifier
1. Descriptions

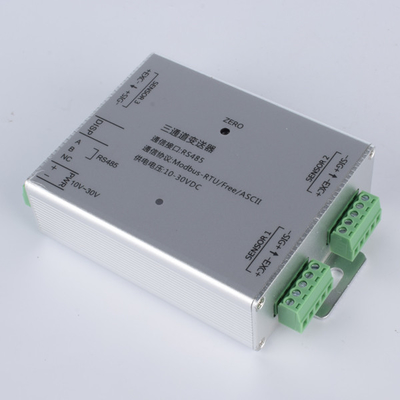

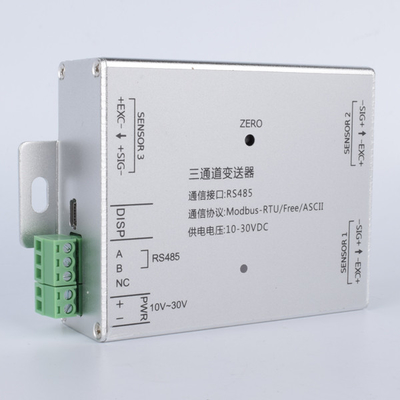

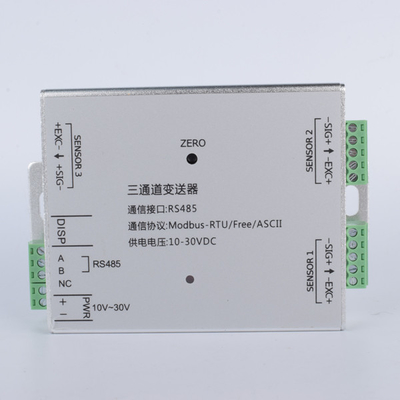

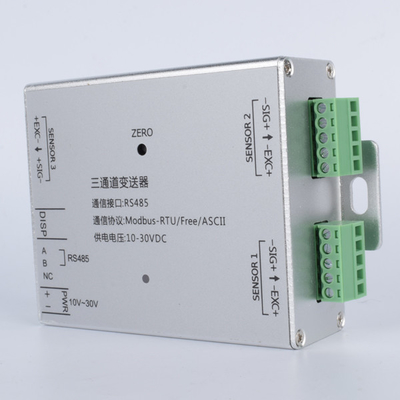

Input Load 2 * 350~1000Ω Sensors 0.01%F.S. Support RS485/232 Load Cell Amplifier FA07-A2 is a model of our brand FIBOS Load Cell Amplifier and instrument series, its Display accuracy is 0.01%F.S., it can be connected to 2 units of 350~1000Ω sensors, its Interface is RS485/232, either one of the two options could be chosen.
2. Specifications
| Product name | Load Cell Amplifier |
| Input specifications | 0.4~6mV/V |
| Display accuracy | 0.01%F.S. |
| Sensor excitation voltage | 5VDC±2%, 100mA |
| Power supply | DC:15V~30V |
| Input load | Up to 2 units of 350~1000Ω sensors can be connected |
| Interface |
RS485/232 (one of two options) (Free/Modbus RTU/ASCII protocol) |
| Operating temp range | -30~60 ℃ |
| Withstand voltage | One minute at 2000V AC50/60Hz |
| Surrounding environment |
Humidity:-10~55℃ Storage:-25~65℃ Humidity:35~85%RH Storage:35~85%RH |
| A/D performance | 24-bit, Delata-Sigma method |
| Output Rate | 10/40/640/1280 Times/sec |
3. Dimension
4. Application
Input Load 2 * 350~1000Ω Sensors 0.01%F.S. Support RS485/232 Load Cell Amplifier FA07-A2 can be used to display values from Column Type Load Cell.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
