Product Details:
|
| Product Name: | Load Cell Amplifier | Input Sensitivity: | 0.4~6mV/V |
|---|---|---|---|
| Input Load: | Up To 6 Units Of 350Ω Sensors Can Be Connected | Display Accuracy: | 0.01%F.S. |
| Analog Output Specification: | 0~±10V,0~20mA,4~20mA | Resolution: | 1/3000 |
| High Light: | 6mv v load cell op amp,20ma load cell op amp,50hz load cell signal conditioner |
||
The Resolution 1/3000 The Accuracy 0.01%F.S. Force Sensor Instrument Load Cell Amplifier
1. Descriptions

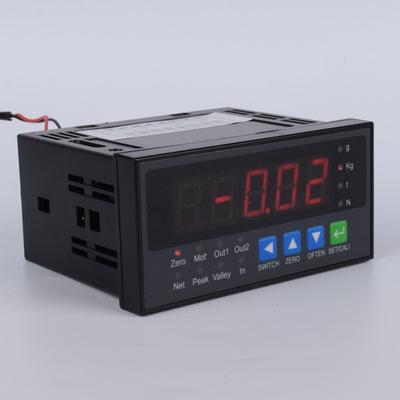

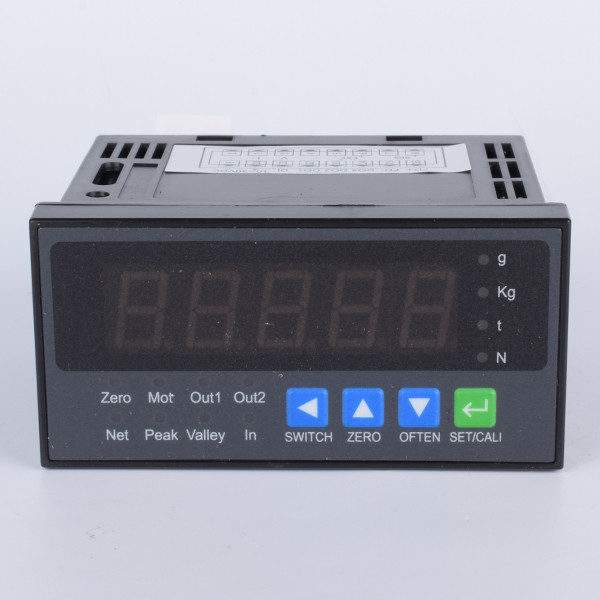

The Resolution 1/3000 The Accuracy 0.01%F.S. Force Sensor Instrument Load Cell Amplifier FA04 is a model of our brand FIBOS Load Cell Amplifier&instrument series, Force Sensor Instrument Load Cell Amplifier FA04 its Sensor excitation voltage range is 5VDC±2%,100mA, it can get connected to 6 units of 350Ω sensors.
2. Specifications
| Product name | Load Cell Amplifier |
| Power supply voltage |
DC:12~30V |
| Input sensitivity |
0.4~6mV/V |
| Sensor excitation voltage |
5VDC±2%,100mA |
| Input load | Up to 6 units of 350Ω sensors can be connected |
| A/D Performance | 24-bit, Delta-Sigma method |
| Display accuracy |
0.01%F.S. |
| Output rate | 10,40,640,1280 Times/sec |
| Operating temp range | -30~60 ℃ |
| Withstand Voltage | 1 minute at 2000V AC50/60Hz |
| Surrounding Environment |
Humidity:-10~55℃ Storage:-25~65℃ Humidity:35~85%RH Storage:35~85%RH |
| Com.Output specification |
RS232/RS485(one of two options) (Free/Modbus RTU/ASCII protocol) |
| Analog Output specification | 0~±10V,0~20mA,4~20mA |
| Resolution |
1/3000 |
3. Dimension
4. Application
The Resolution 1/3000 The Accuracy 0.01%F.S. Force Sensor Instrument Load Cell Amplifier FA04 can be applied to display weight values from weight sensor.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
