Product Details:
|
| Product Name: | Load Cell Amplifier | Display Accuracy: | ≤±0.05%F.S. |
|---|---|---|---|
| Power Supply: | DC:18V--30V | Output Rate: | 10,40,640,1280 Times/sec |
| Rated Output: | 0~5v,0~10v,0~±5v,0~±10v,0~20mA,0~20mA (All The Above Signals Can Be Switched, No Need To Return To The Factory) | IP Class: | IP64 |
| High Light: | 18v tactile transducer amplifier,0.05% tactile transducer amplifier,30v weighbridge controller |
||
DC 18V~30V ≤±0.05%F.S. The Operating Temp Range -30~85℃ IP64 Load Cell Amplifier
1. Descriptions

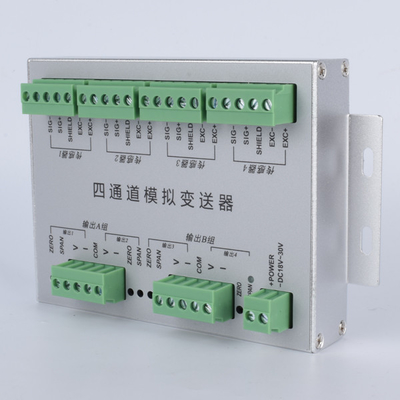

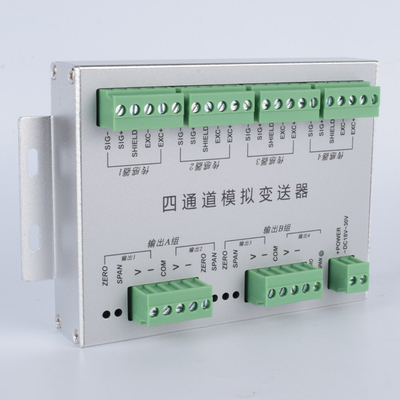

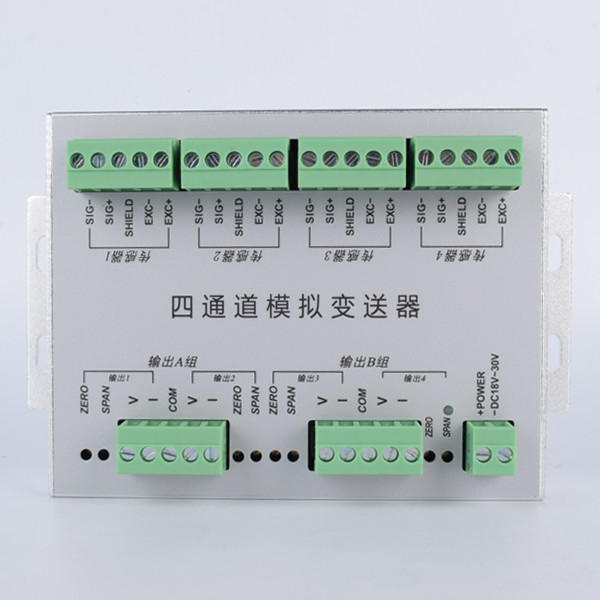

DC 18V~30V ≤±0.05%F.S. The Operating Temp Range -30~85℃ IP64 Load Cell Amplifier FA01-A4 belongs to FA01 which is in force transducer instrument and amplifier category, Load Cell Amplifier FA01-A4 its Sampling frequency ≥5KHZ, its Sensor excitation voltage range is 5VDC±2%,100mA or 12VDC can be optional.
2. Specifications
| Product name | Load Cell Amplifier |
| Output specifications | 0.4~6mV/v |
| Display accuracy | ≤±0.05%F.S. |
| Sensor excitation voltage | 5VDC±2%,100mA(or 12VDC optional) |
| Power supply | DC:18V--30V |
| A/D performance | 24-bit, Delta-Sigma method |
| Rated output |
0~5v,0~10v,0~±5v,0~±10v,0~20mA,0~20mA (All the above signals can be switched, no need to return to the factory) |
| Output rate | 10,40,640,1280 Times/sec |
| Operating temp range | -30~85℃ |
| Surrounding environment |
Humidity:-10~55℃ Storage:-25~65℃ Humidity:35~85%RH Storage:35~85%RH |
| Sampling frequency | ≥5KHZ |
| IP Class | IP64 |
3. Dimension
4. Application
DC 18V~30V ≤±0.05%F.S. The Operating Temp Range -30~85℃ IP64 Load Cell Amplifier FA01-A4 could be applied for force value displaying.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
