Product Details:
|
| Product Name: | Load Cell Amplifier | Division Value: | 1,2,5,10,20,50 |
|---|---|---|---|
| Readability: | 900000 | A/D Conversion Speed: | ≤3200 Times/sec |
| Nonlinear Error: | ≤0.002%F.S. | Humidity Range: | ≤90%RH(no Condensation) |
| High Light: | 0.002% Load Cell Amplifier,5v Load Cell Amplifier,350 ohm weighing scale controller |
||
Input 4 * 350Ω Sensors Dual-Row LED Display ≤0.002%F.S. Weighing Controller Load Cell Amplifier
1. Descriptions

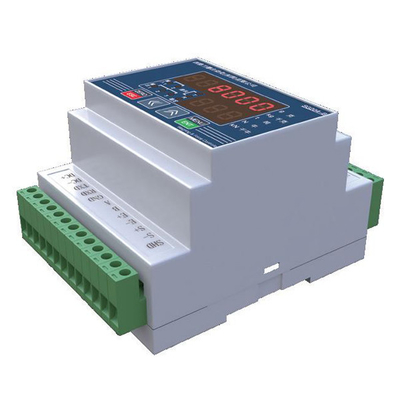

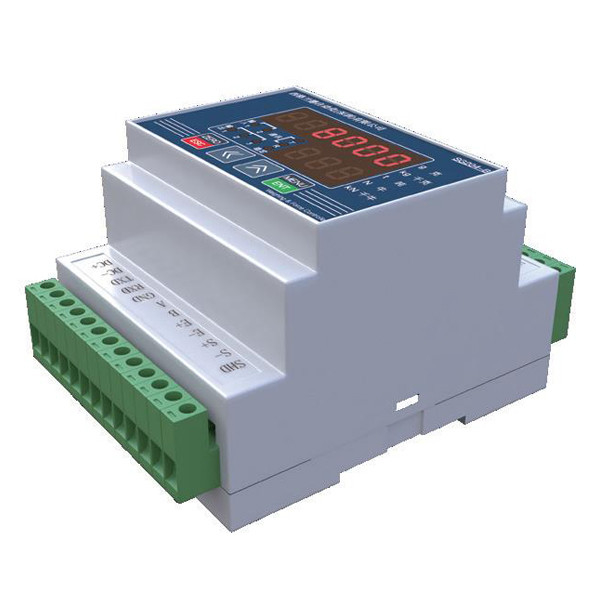

Input 4 * 350Ω Sensors Dual-Row LED Display ≤0.002%F.S. Weighing Controller Load Cell Amplifier FA08 is a model of our brand FIBOS Load Cell Amplifier and instrument series, FA08 has a Dual-row LED display, its Maximum scale display range is 999999, its Readability is 900000, its Division value is 1,2,5,10,20,50.
2. Specifications
| Product name | Load Cell Amplifier |
| Display | Dual-row LED display |
| Maximum scale display range | 999999 |
| Division value | 1,2,5,10,20,50 |
| Readability | 900000 |
| A/D Conversion speed | ≤3200 Times/sec |
| Accept sensor | -30mV~+30mV(-6mV/V~+6mV/V) |
| Input load | Up to 4 units of 350Ω sensors can be connected |
| Analog Output specification | ±10V/4~20mA(parameters optional) |
| Com.Output specification | RS232,RS485(parameters optional) |
| Output specification(I/O) | Relay/transistor(hardware optional) |
| Temp.effect on output | ≤10ppm / ℃ |
| Temp.effect on zero | ≤10μV / ℃ |
| Excitation voltage | 5VDC |
| Power supply | 24±5VDC |
| Power waste | ≤10W |
| Operation temp range | -10~50 ℃ |
| Nonlinear error | ≤0.002%F.S. |
| Humidity range | ≤90%RH(no condensation) |
3. Dimension
4. Application
Input 4 * 350Ω Sensors Dual-Row LED Display ≤0.002%F.S. Weighing Controller Load Cell Amplifier FA08 can be used to display values from Electronic Digital Weighing Scale.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
