Product Details:
|
| Product Name: | Load Cell Amplifier | Display: | Dual-row 5-digit Display Or Customized |
|---|---|---|---|
| Display Accuracy: | 0.012%F.S. Or Customized | Input Load: | Up To 4 Units Of 350Ω Sensors Can Be Connected Or Customized |
| IP Class: | IP64 Or Customized | Material: | Aluminum Alloy Or Customized |
| High Light: | 350 ohm high speed load cell amplifier,100hz high speed load cell amplifier,IP64 tension amplifier |
||

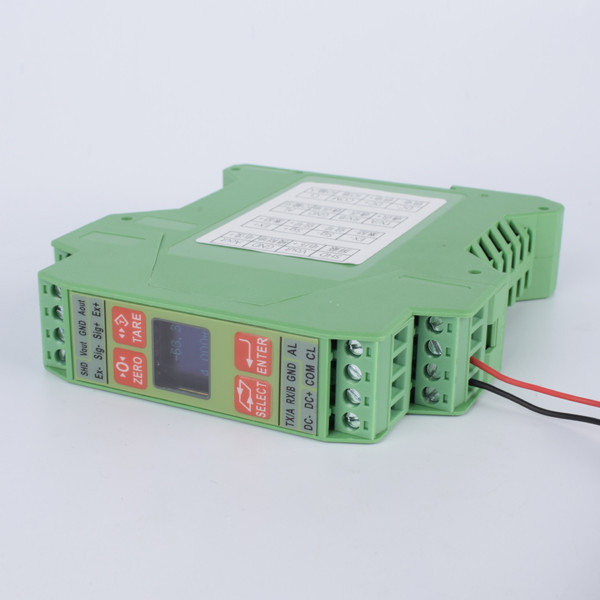

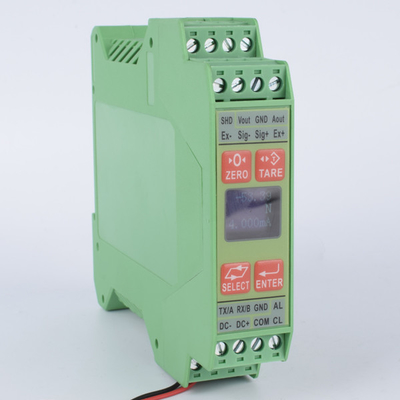

0.012%F.S. Or Customized Tension Amplifier Load Cell Amplifier
1. Descriptions
0.012%F.S. Or Customized Tension Amplifier Load Cell Amplifier FA21 is a model of our brand FIBOS load transducer amplifier and instrument series, Load Cell Amplifier FA21 has a Dual-row 5-digit display or can be customized, its Display accuracy is 0.012%F.S. or can be customized, it could get connected to 4units of 350Ω sensors or could also be c
2. Specifications
| Product name | Load Cell Amplifier |
| Output specifications | 0.4~6mV/V |
| Display | Dual-row 5-digit display or customized |
| Display accuracy | 0.012%F.S. or customized |
| Sensor excitation voltage | 5VDC±2%,100mA |
| Input load | Up to 4 units of 350Ω sensors can be connected or customized |
| Power supply | DC:10~30V |
| Acquisition frequency | ≥100-5000HZ |
| Operation temp range | -30~60℃ |
| IP Class | IP64 or customized |
| Material | Aluminum alloy or customized |
| A/D performance | 24-bit,Delta-Sigma method |
| Output rate | 10,40,640,1280 Times/sec |
| Interface | RS485+RS232/ RS485+AnalogOutput(0~±10V/0~±5V/0~20mA/ 4~20mA)(Output method can choose RS232+RS485 or RS485+analog output.) |
| Withstand voltage | 1 minute at 2000V AC50/60Hz |
| Surrounding environment |
Humidity:-10~55℃ Storage:-25~65℃ Humidity:35~85%RH Storage:35~85%RH |
| Analog output | 0~±10V,0~20mA,4~20mA or customized |
| Resolution | 1/3000 or customized |
3. Dimension
need to be customized
4. Application
0.012%F.S. Or Customized Tension Amplifier Load Cell Amplifier FA21 can be used for load values displaying.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
