Product Details:
|
| Product Name: | Shear Beam Load Cell | Capacity: | 5,10,20,50,100,200,500kg |
|---|---|---|---|
| Rated Output: | 2.0±0.05mV/V | Non-linearity: | ≤0.018%F.S. |
| Repeatability: | ≤0.018%F.S. | Material: | Stainless Steel |
| Highlight: | 5kg beam type load cell,stainless steel beam type load cell,2mv v shear force sensor |
||

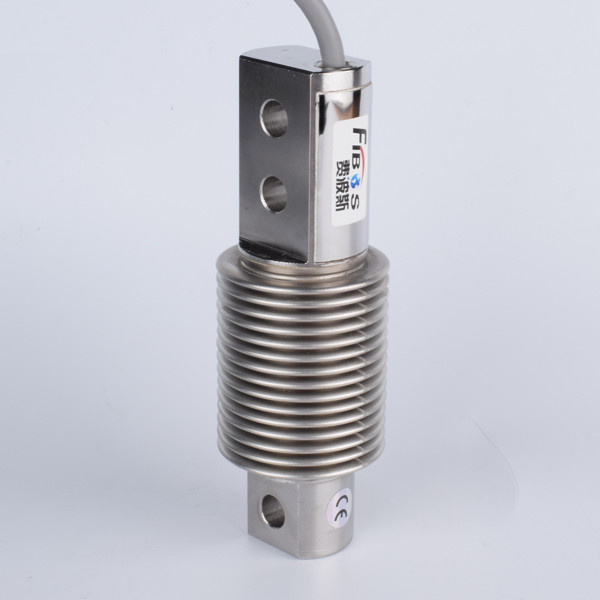

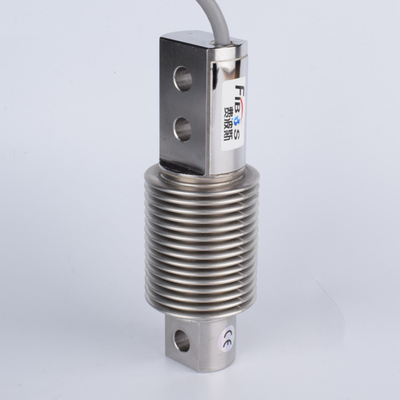

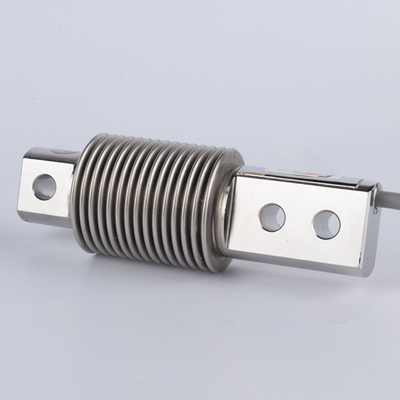

5-500kg ≤0.018%F.S. Stainless Steel Bellow Type Load Cell Shear Beam Load Cell
1. Descriptions
5-500kg ≤0.018%F.S. Stainless Steel Bellow Type Load Cell Shear Beam Load Cell FA510 is a model of Bellow Type Load Cell which belongs to Shear Beam Load Cell, our this product could 100% replace the same product of that well-known German brand in terms of quality. It could measure load from 5kg, 10kg, 20kg, 50kg, 100kg, 200kg to 500kg, its creep(30min)≤0.0166%F.S..
2. Specifications
| Product name | Shear Beam Load Cell |
| Capacity | 5,10,20,50,100,200,500kg |
| Rated output | 2.0±0.05mV/V |
| Zero Balance | ±0.02mV/V |
| Creep(30min) | ≤0.0166%F.S. |
| Non-linearity | ≤0.018%F.S. |
| Hysteresis | ≤0.017%F.S. |
| Repeatability | ≤0.018%F.S. |
| Input impedance | 380±5Ω |
| Output impedance | 350±5Ω |
| Temp.effect on output | 0.008%F.S./10 ℃ |
| Temp.effect on zero | 0.0125%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -30~70 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀5.4x3000mm |
| Weight | 0.5kg |
| Material | Stainless steel |
3. Dimension
4. Application
5-500kg ≤0.018%F.S. Stainless Steel Bellow Type Load Cell Shear Beam Load Cell is suitable for electronic bench scales.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
