Product Details:
|
| Product Name: | Shear Beam Load Cell | Capacity: | 5,10,20,50,100,200,500kg |
|---|---|---|---|
| Rated Output: | 2.0±0.002mV/V | Non-linearity: | ≤0.02%F.S. |
| Repeatability: | ≤0.018%F.S. | Material: | Alloy Steel |
| Highlight: | bellow type Shear Beam Load Cell,0.02% Shear Beam Load Cell,500kg weight measuring sensor |
||

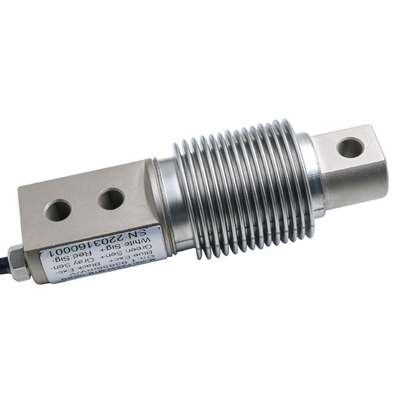

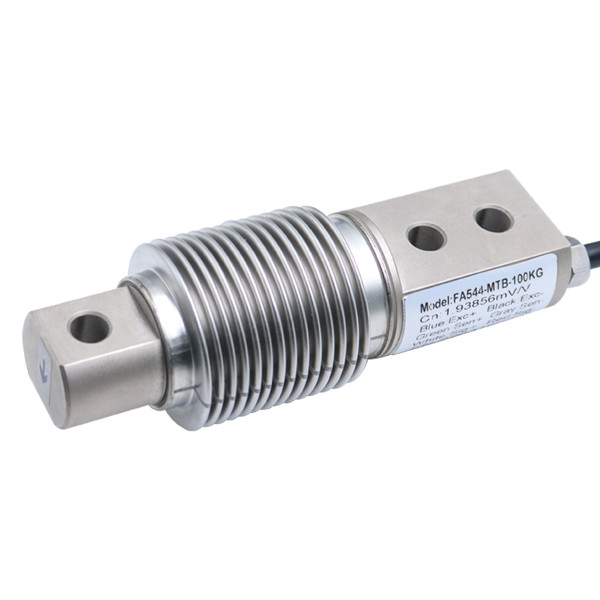

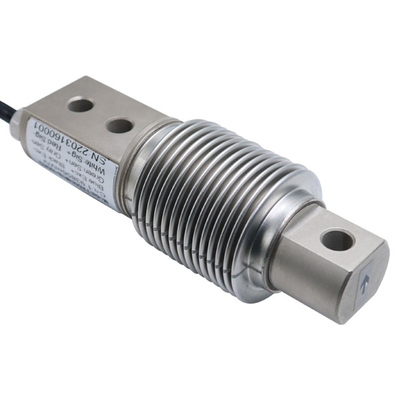

5-500kg ≤0.02%F.S. Alloy Steel Bellow Type Load Cell Shear Beam Load Cell
1. Descriptions
5-500kg ≤0.02%F.S. Alloy Steel Bellow Type Load Cell Shear Beam Load Cell FA544 is one of bellow type load cells belonging to the shear beam load cells, its measuring capacity ranges from 5kg up to 500kg, its creep(30min)≤0.0166%F.S., its Rated output is 2.0±0.002mV/V, its Temp.effect on output is 0.008%F.S./10 ℃ and Temp.effect on zero is 0.012%F.S./10 ℃.
2. Specifications
| Product name | Shear Beam Load Cell |
| Capacity | 5,10,20,50,100,200,500kg |
| Rated output | 2.0±0.002mV/V |
| Zero Balance | ±1%mV/V |
| Creep(30min) | ≤0.0166%F.S. |
| Non-linearity | ≤0.02%F.S. |
| Hysteresis | ≤0.02%F.S. |
| Repeatability | ≤0.018%F.S. |
| Inputresistance | 387±4Ω |
| Output resistance | 350±1Ω |
| Temp.effect on output | 0.008%F.S./10 ℃ |
| Temp.effect on zero | 0.012%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60 ℃ |
| Operating temp range | -20~80 ℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | ⌀6X3m |
| Material | Alloy steel |
3. Dimension
4. Application
5-500kg ≤0.02%F.S. Alloy Steel Bellow Type Load Cell Shear Beam Load Cell is mainly applied in Packaging scales and Belt scales.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
