Product Details:
|
| Product Name: | 3 Axis Force Sensor | Capacity: | M(X):200N.m M(Y):200N.m F(Z):3000N |
|---|---|---|---|
| Rated Output: | M(X/Y):3.0mV/V F(Z):0.5mV/V | Non-linearity: | ≤0.5%F.S. |
| Repeatability: | ≤0.3%F.S. | Material: | Stainless Steel |
| Highlight: | 3mv v 3 Axis Force Sensor,200nm 3 Axis Force Sensor,3000n force load cell |
||

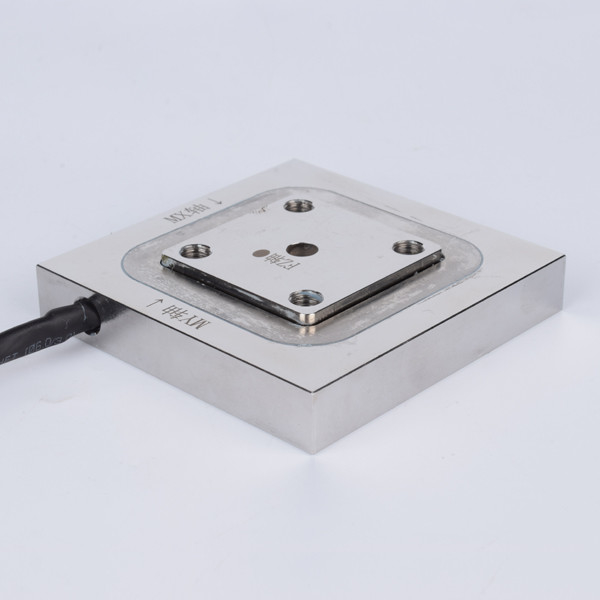

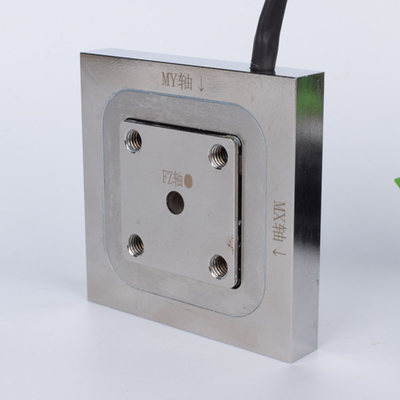

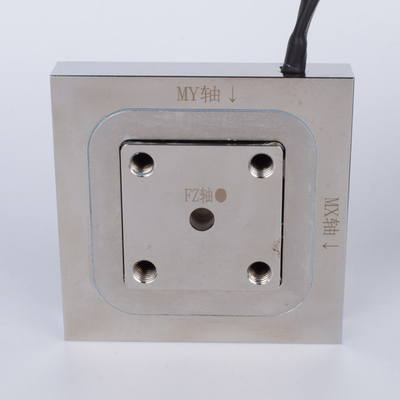

M(X) M(Y) 200N.M F(Z) 3000N Stainless Steel 3 Axis Force Sensor
1. Descriptions
M(X) M(Y) 200N.M F(Z) 3000N Stainless Steel 3 Axis Force Sensor FA732 is a model of our brand FIBOS FA7-Series, 3 Axis Force Sensor FA732 can be used to measure 3-axis force Mx and My are both 200N.m Torque force capacity, its Fz is 3000N capacity, its Rated output is 3.0mV/V for Mx and My, and 0.5mV/V for Fz.
2. Specifications
| Product name | 3 Axis Force Sensor |
| Capacity |
M(X):200N.m M(Y):200N.m F(Z):3000N |
| Rated output |
M(X/Y):3.0mV/V F(Z):0.5mV/V |
| Zero Balance | ±1%mV/V |
| Creep(30min) | ≤0.1%F.S. |
| Non-linearity | ≤0.5%F.S. |
| Hysteresis | ≤0.5%F.S. |
| Repeatability | ≤0.3%F.S. |
| Input impedance | 385±20Ω |
| Output impedance | 350±10Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~10V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀2x3000mm |
| Material | Stainless steel |
3. Dimension
4. Application
M(X) M(Y) 200N.M F(Z) 3000N Stainless Steel 3 Axis Force Sensor FA732 can be used for robotic arms in robotic industry.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
