Product Details:
|
| Product Name: | Weighing Module | Capacity: | 10,20,50,100,220,550,1100,2200,4400kg |
|---|---|---|---|
| Rated Output: | 1.94±0.2%mV/V | Non-linearity: | ≤0.018%F.S. |
| Repeatability: | ≤0.017%F.S. | IP Class: | IP68 |
| Highlight: | 12v plc load cell module,IP68 plc load cell module,10kg load cells for weighing |
||

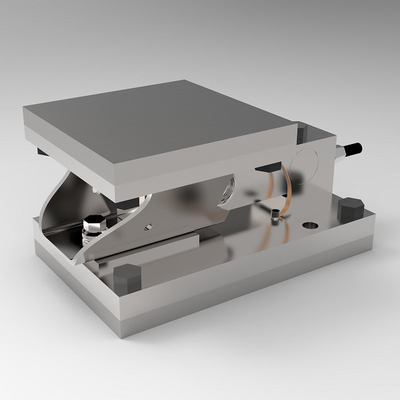

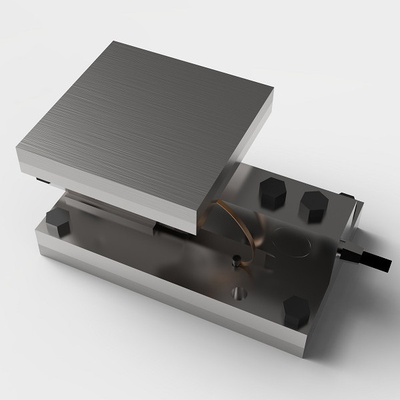

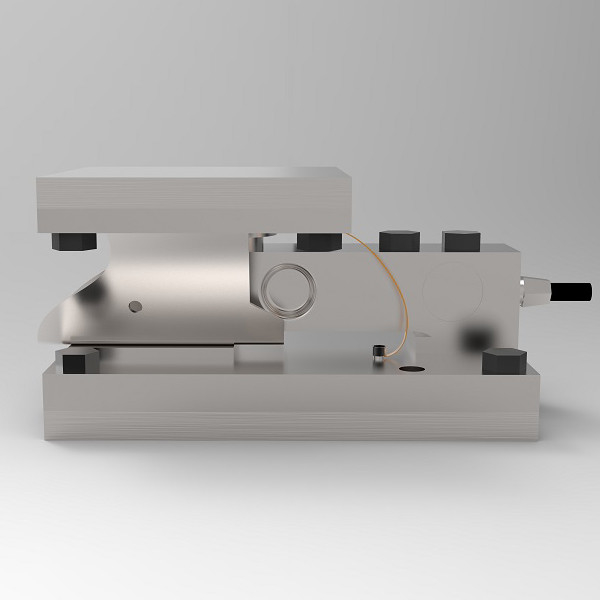

10-4400kg IP68 Weighing Module
1. Descriptions
10-4400kg IP68 Weighing Module FA813 is a model of our brand FIBOS FA8-Series, Weighing Module FA813 can be used to measure load 10kg,20kg,50kg,100kg,220kg,550kg,1100kg,2200kg and 4400kg capacity, its Rated output range is 1.94±0.2%mV/V, its Non-linearity and Hysteresis both ≤0.018%F.S.., its Creep(30min) ≤0.02%F.S. and its Repeatability ≤0.017%F.S..
2. Specifications
| Product name | Weighing Module |
| Capacity | 10,20,50,100,220,550,1100,2200,4400kg |
| Rated output | 1.94±0.2%mV/V |
| Zero Balance | ±1%mV/V |
| Creep(30min) | ≤0.02%F.S. |
| Non-linearity | ≤0.018%F.S. |
| Hysteresis | ≤0.018%F.S. |
| Repeatability | ≤0.017%F.S. |
| Input resistance | 385±10Ω |
| Output resistance | 350±1Ω |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated temp range | -10~40 ℃ |
| Operating temp range | -40~65 ℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | ⌀4X3m |
| IP Class | IP68 |
| Cable length |
10-100:3m 220-4400:2,3,5,10m |
3. Dimension
4. Application
10-4400kg IP68 Weighing Module FA813 could be used for equipment scales in the machinery industry.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
