Product Details:
|
| Product Name: | Tension Force Sensor | Capacity: | 1,3,5,10,30,50,100,300,500,1000,3000,5000kg Or Customized |
|---|---|---|---|
| Rated Output: | 0.6±20%mV/V | Zero Balance: | ±2%mV/V |
| Creep(30min): | ≤0.018%F.S. Or Customized | Weight: | 0.24kg Or Customized |
| High Light: | 5000kg Tension Force Sensor,12v Tension Force Sensor,alloy steel spring tension sensor |
||

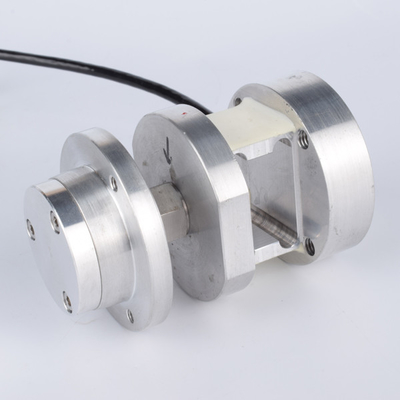

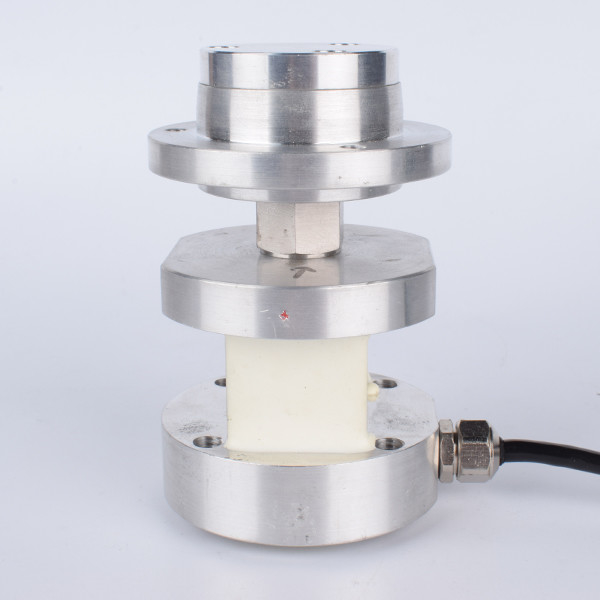

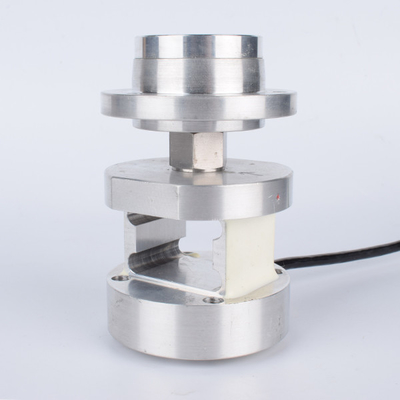

1,3,5,10,30,50,100,300,500,1000,3000,5000kg Or Customized Tension Force Sensor
1. Descriptions
1,3,5,10,30,50,100,300,500,1000,3000,5000kg Or Customized Tension Force Sensor FA928 is a model of our brand FIBOS FA9-Series, it belongs to Tension Force Sensor category, FA928 can be used to measure tension force ranges from 1kg,3kg,5kg,10kg,30kg,50kg,100kg,300kg,500kg,1000kg,3000kg and 5000kg or customized capacity.
2. Specifications
| Product name | Tension Force Sensor |
| Capacity | 1,3,5,10,30,50,100,300,500,1000,3000,5000kg or customized |
| Rated output | 0.6±20%mV/V |
| Zero Balance | ±2%mV/V |
| Creep(30min) | ≤0.018%F.S. or customized |
| Non-linearity | ≤0.018%F.S. or customized |
| Hysteresis | ≤0.016%F.S. or customized |
| Repeatability | ≤0.018%F.S. or customized |
| Input impedance | 350±10Ω |
| Output impedance | 300±5Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -20~60 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀4x3000mm or customized |
| Material | Alloy steel or customized |
| Weight | 0.24kg or customized |
3. Dimension
Need to be customized
4. Application
1,3,5,10,30,50,100,300,500,1000,3000,5000kg Or Customized Tension Force Sensor FA928 can be used for mechanical measurements of detectors.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
