Product Details:
|
| Product Name: | 3 Axis Force Sensor | Capacity: | F:2000N M:100N.m |
|---|---|---|---|
| Creep(30min): | ≤0.1%F.S. | Repeatability: | ≤0.05%F.S. |
| Material: | Stainless Steel | Insulation Resistance: | ≥5000MΩ/100V(DC) |
| Highlight: | 100nm 3 axis load cell,0.1% 3 axis load cell,100v multi axis force torque sensor |
||

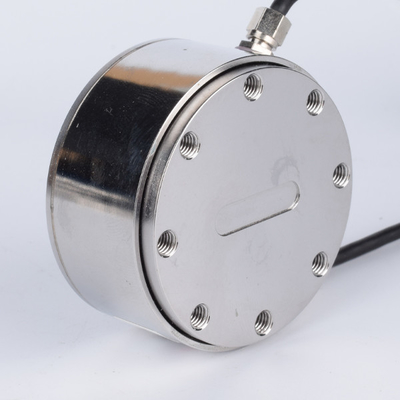

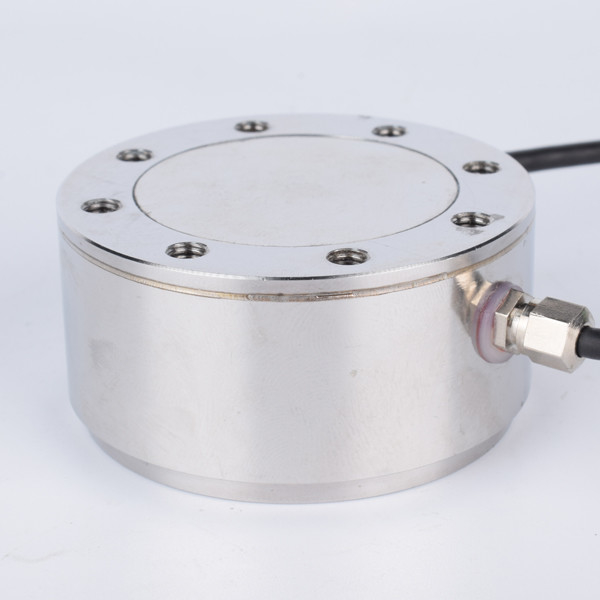

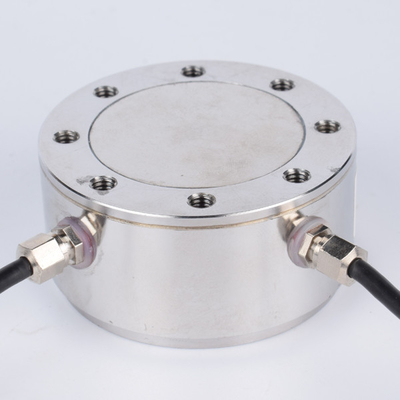

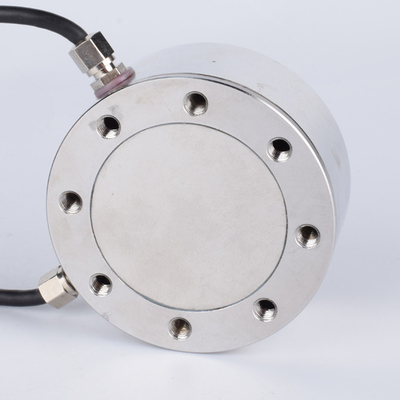

F 2000N M 100Nm ≤0.1%F.S. Stainless Steel 3 Axis Force Sensor
1. Descriptions
F 2000N M 100Nm ≤0.1%F.S. Stainless Steel 3 Axis Force Sensor FA729 is a model of our brand FIBOS FA7-Series, 3 Axis Force Sensor FA729 can be used to measure force F is 2000N and M is 100N.m, its Creep(30min) ≤0.1%F.S., its Non-linearity ≤0.2%F.S., its Hysteresis ≤0.3%F.S. and its Repeatability ≤0.05%F.S..
2. Specifications
| Product name | 3 Axis Force Sensor |
| Capacity |
F:2000N M:100N.m |
| Rated output | 0.5-1.0mV/V |
| Zero Balance | ±1%mV/V |
| Creep(30min) | ≤0.1%F.S. |
| Non-linearity | ≤0.2%F.S. |
| Hysteresis | ≤0.3%F.S. |
| Repeatability | ≤0.05%F.S. |
| Input impedance | 380±20Ω |
| Output impedance | 350±10Ω |
| Temp.effect on output | 0.05%F.S./10°C |
| Temp.effect on zero | 0.05%F.S./10°C |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5-12V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10-60°C |
| Operating Temp Range | -20-80°C |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀3x3000mm |
| Material | Stainless steel |
3. Dimension
4. Application
F 2000N M 100Nm ≤0.1%F.S. Stainless Steel 3 Axis Force Sensor FA729 could be used in the logistics industry for parcel sorting.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
