Product Details:
|
| Product Name: | Spoke Type Load Cell | Capacity: | 50,100,500,1000,2000,3000,4000,5000kg Or Customized |
|---|---|---|---|
| Creep(30min): | ≤0.3%F.S. Or Customized | Non-linearity: | ≤0.3%F.S. Or Customized |
| Zero Balance: | ±0.03mV/V | Rated Output: | 1.0±10%mV/V |
| Highlight: | 1mv v wheel force sensor,500kg wheel force sensor,stainless steel force washer load cell |
||

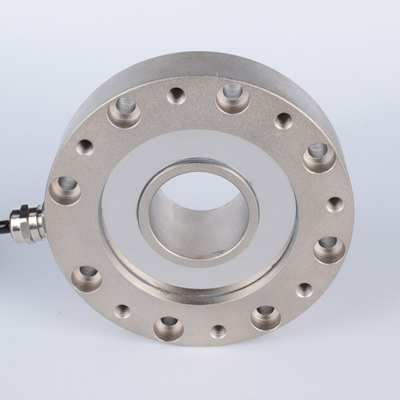

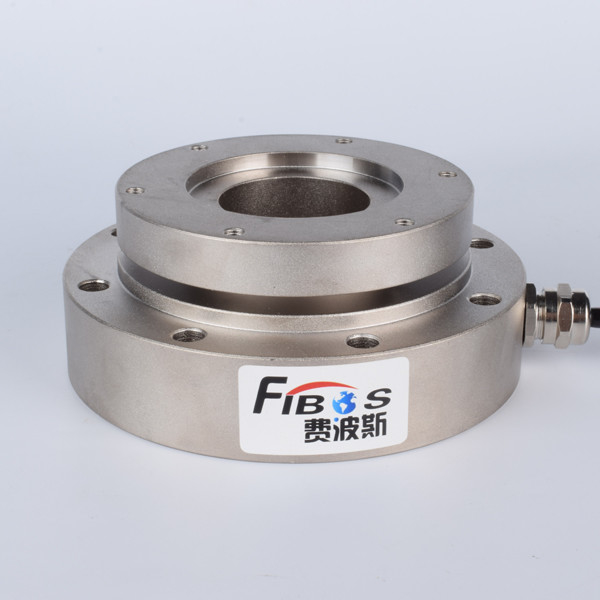

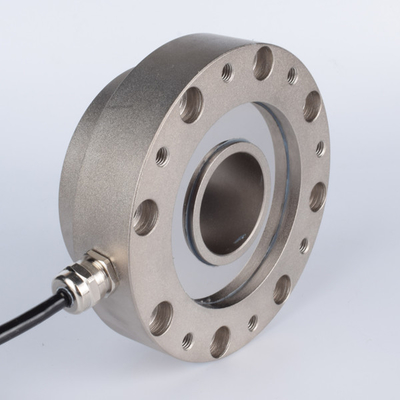

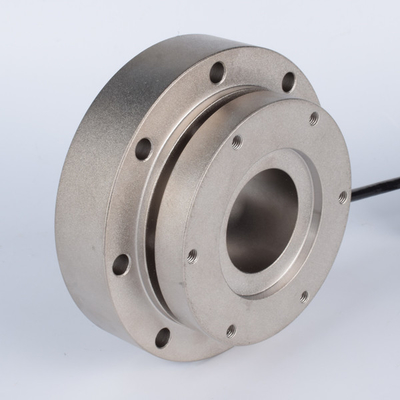

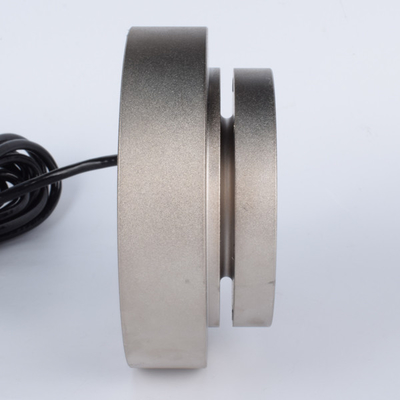

50,100,500,1000,2000,3000,4000,5000kg Or Customized Spoke Type Load Cell
1. Descriptions
50,100,500,1000,2000,3000,4000,5000kg Or Customized Spoke Type Load Cell FA157 is a model of our brand FIBOS FA1-Series, Spoke Type Load Cell FA157 can be used to measure load ranges from 50kg,100kg,500kg,1000kg,2000kg,3000kg,4000kg and 5000kg or customized capacity, its Creep(30min),Non-linearity,Hysteresis and Repeatability all ≤0.3%F.S. or can be customized.
2. Specifications
| Product name | Spoke Type Load Cell |
| Capacity | 50,100,500,1000,2000,3000,4000,5000kg or customized |
| Rated output | 1.0±10%mV/V |
| Zero Balance | ±0.03mV/V |
| Creep(30min) | ≤0.3%F.S. or customized |
| Non-linearity | ≤0.3%F.S. or customized |
| Hysteresis | ≤0.3%F.S. or customized |
| Repeatability | ≤0.3%F.S. or customized |
| Input impedance | 700±20Ω |
| Output impedance | 700±10Ω |
| Temp.effect on output | 0.1%F.S./10 ℃ |
| Temp.effect on zero | 0.1%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~70 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀3x3500mm or customized |
| Weight | 0.23kg or customized |
| Material | Stainless steel or customized |
3. Dimension
Need to be customized
4. Application
50,100,500,1000,2000,3000,4000,5000kg Or Customized Spoke Type Load Cell FA157 could be applied for cement batching silos.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
