Product Details:
|
| Product Name: | Spoke Type Load Cell | Capacity: | 1,2,5,10,15,20,30,40,50kg Or Customized |
|---|---|---|---|
| Creep(30min): | ≤0.012%F.S. Or Customized | Non-linearity: | ≤0.013%F.S. Or Customized |
| Hysteresis: | ≤0.012%F.S. Or Customized | Repeatability: | ≤0.012%F.S. Or Customized |
| Highlight: | 15v wheel force transducer,50kg wheel force transducer,700 ohm heavy duty load cell |
||

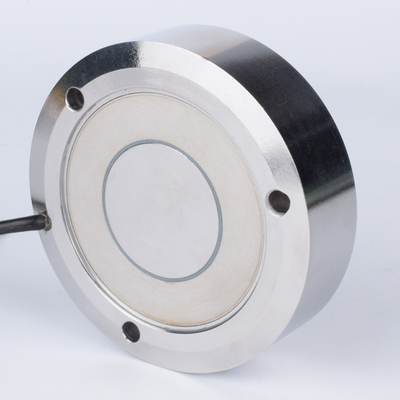

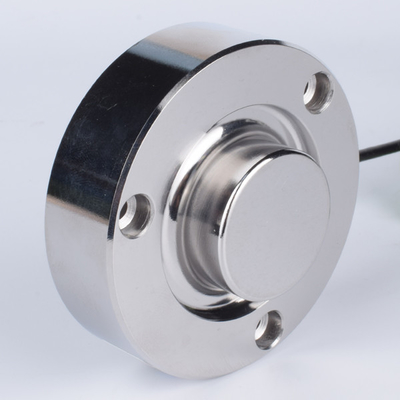

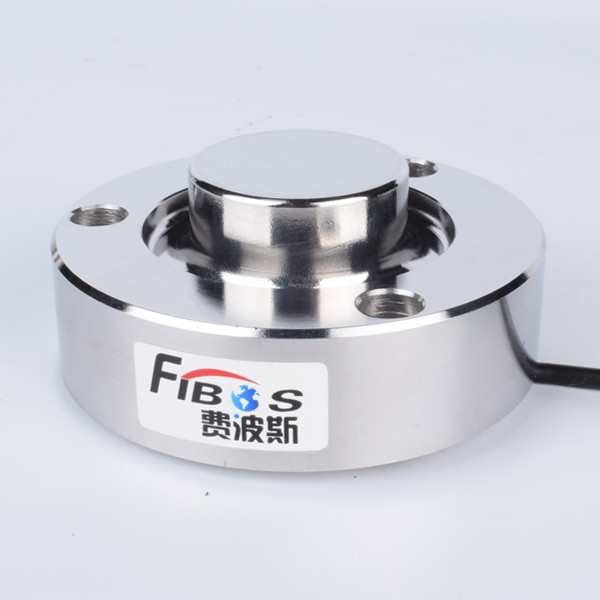

1,2,5,10,15,20,30,40,50kg Or Customized Spoke Type Load Cell
1. Descriptions
1,2,5,10,15,20,30,40,50kg Or Customized Spoke Type Load Cell FA1063 is a model of our brand FIBOS FA1-Series, Spoke Type Load Cell FA1063 can be used to measure load ranges from 1kg,2kg,5kg,10kg,15kg,20kg,30kg,40kg and 50kg or customized capacity, its Cable size is ⌀3x5000mm or could be customized, its Weight is 0.17kg or can also be customized.
2. Specifications
| Product name | Spoke Type Load Cell |
| Capacity | 1,2,5,10,15,20,30,40,50kg or customized |
| Rated output | 1.0±10%mV/V |
| Zero Balance | ±0.03mV/V |
| Creep(30min) | ≤0.012%F.S. or customized |
| Non-linearity | ≤0.013%F.S. or customized |
| Hysteresis | ≤0.012%F.S. or customized |
| Repeatability | ≤0.012%F.S. or customized |
| Input impedance | 700±20Ω |
| Output impedance | 700±10Ω |
| Temp.effect on output | 0.1%F.S./10 ℃ |
| Temp.effect on zero | 0.1%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~70 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀3x5000mm or customized |
| Weight | 0.17kg or customized |
| Material | Alloy steel or customized |
3. Dimension
Need to be customized
4. Application
1,2,5,10,15,20,30,40,50kg Or Customized Spoke Type Load Cell FA1063 could be applied in industrial automation measurement control systems.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
