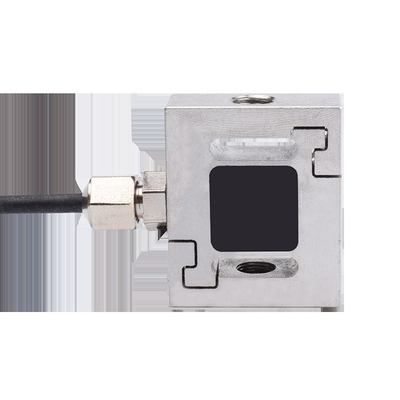

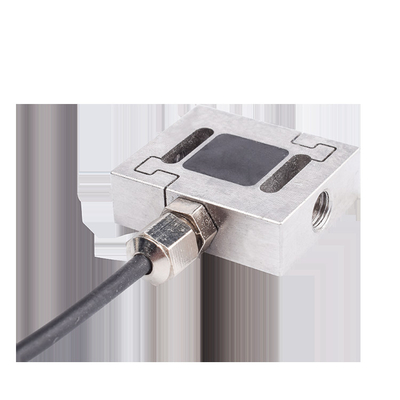

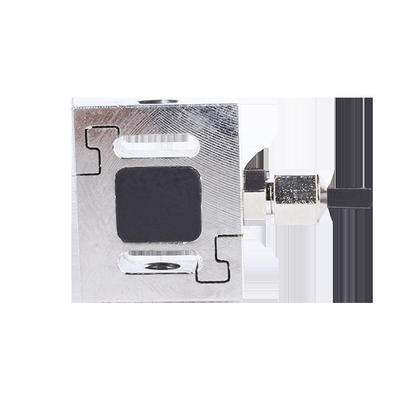

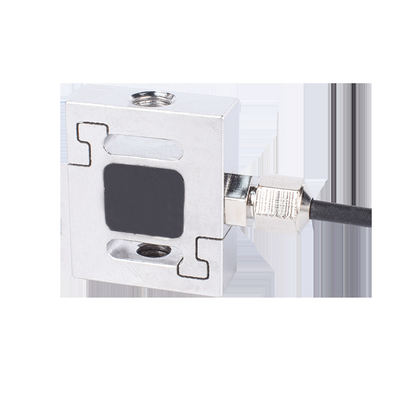

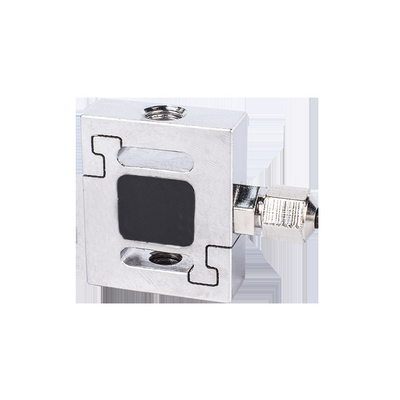

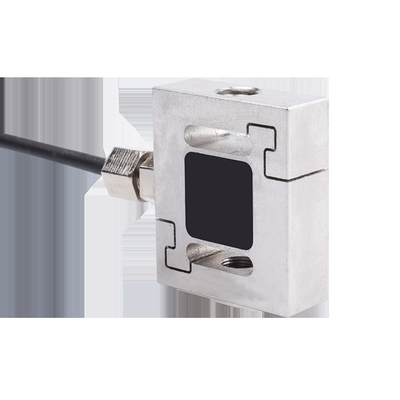

High accuracy tension and compression 10~1000N S type load cell for hopper scale

High accuracy tension and compression 10~1000N S type load cell for hopper scale
High accuracy tension and compression 10~1000N S type load cell for hopper scale High accuracy tension and compression 10~1000N S type load cell for hopper scale High accuracy tension and compression 10~1000N S type load cell for hopper scale High accuracy tension and compression 10~1000N S type load cell for hopper scale High accuracy tension and compression 10~1000N S type load cell for hopper scale High accuracy tension and compression 10~1000N S type load cell for hopper scale

Large Image :  High accuracy tension and compression 10~1000N S type load cell for hopper scale

Product Details:
Place of Origin: Jiangsu, China
Brand Name: FIBOS
Certification: ISO CE RoHS
Model Number: FA302
Payment & Shipping Terms:
Minimum Order Quantity: To Be Negotiated
Price: To Be Negotiated
Packaging Details: 1.Opp bag 2.Custom box 3.According to your request
Delivery Time: 1-7 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 Pieces per Month

High accuracy tension and compression 10~1000N S type load cell for hopper scale

Description
Product Name: S Type Load Cell Capacity: 10,20,50,100,200,500,1000N
Sensitivity: 2.0±10%mV/V Zero Balance: ±0.02mV/V
Cable Size: 2*3000mm Weight: 0.1kg
Material: Stainless Steel
Highlight:

IP65 Electronic Digital Weighing Scale

,

forklift Electronic Digital Weighing Scale

,

waterproof forklift weight scale

High accuracy tension and compression 10~1000N S type load cell for hopper scale

1. Precise

High precision allows reliable measurements in the lower measuring range of the sensor: Benefit from an extremely wide measuring range and an optimal price/performance ratio.
2. Withstands a lot
Rust-free material ensures long durability. Excellent stability, even under adverse conditions.
3. Immediately ready to use
Time-saving plug-and-play solution: Eliminates inconvenient field soldering and connector assembly.



2. Specifications



item
S-type load cell
Model Number
FA302
Type
Load Cell
Place of Origin
China

Jiangsu
Brand Name
Fibos
Usage
For scales and balances
Theory
Resistance strain-gage
Output
Analog or digital signal
Description
S type tension compression force sensor
Capacity
10, 20, 50, 100, 200, 500, 1000N
Sensitivity
2.0±10%mV/V
Zero Balance
±0.02mV/V
Non-linearity
≤0.05%F.S.
Hysteresis
≤0.05%F.S.
Repeatability
≤0.05%F.S.
Input impedance
350/650±5Ω
Output impedance
350/650±5Ω
Cable size
2*3000mm
Material
Stainless steel



3. Dimension

High accuracy tension and compression 10~1000N S type load cell for hopper scale 0







5.FAQ

Q1: What is your terms of delivery?

A: EXW, FOB, CFR and CIF.



Q2: Can you produce according to the samples?

A: Yes, we can produce according to your samples or technical drawings.



Q3:What is your sample policy?

A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.



Q4: What's your quality guarantee policy?

A: Quality guarantee: 12 months.

If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.

And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
