Product Details:
|
| Product Name: | Single Point Weight Sensor | Capacity: | 0.1,0.2,0.5,1,2,5,10,20,50N Or Customized |
|---|---|---|---|
| Creep(30min): | ≤0.01%F.S. Or Customized | Non-linearity: | ≤0.01%F.S. Or Customized |
| Hysteresis: | ≤0.01%F.S. Or Customized | Repeatability: | ≤0.01%F.S. Or Customized |
| Highlight: | 50n single point load cell mounting,alloy steel single point load cell mounting,0.01% strain gauge type load cell |
||
0.1,0.2,0.5,1,2,5,10,20,50N Or Customized Single Point Weight Sensor
1. Descriptions

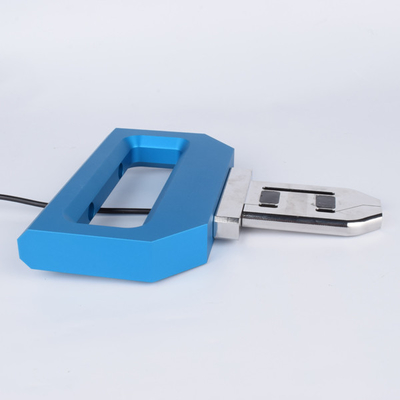

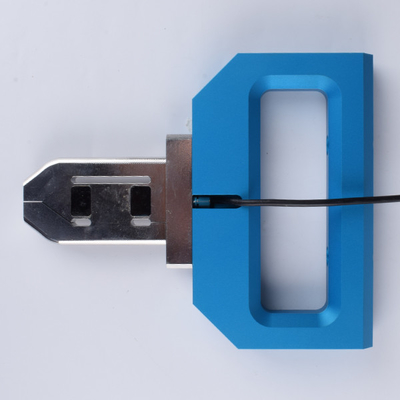

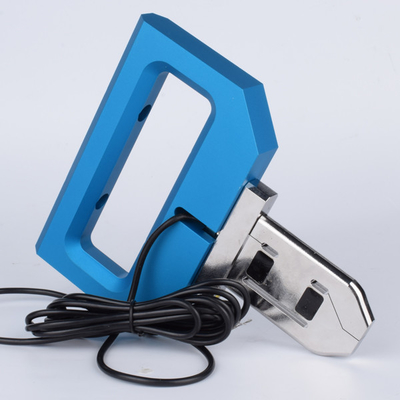

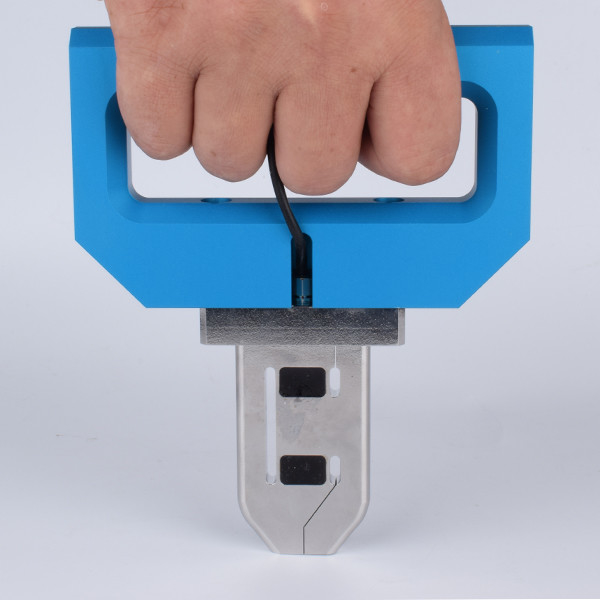

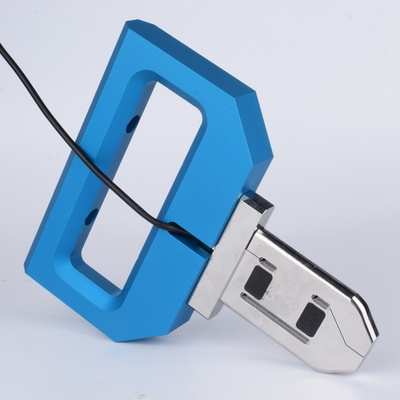

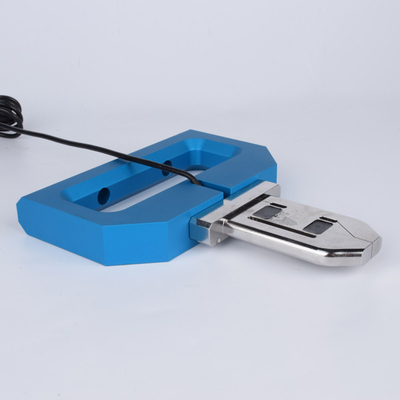

0.1,0.2,0.5,1,2,5,10,20,50N Or Customized Single Point Weight Sensor FA1062 is a model of our brand FIBOS FA1-Series, Single Point Weight Sensor FA1062 can be used to measure weight ranges from 0.1N,0.2N,0.5N,1N,2N,5N,10N,20N and 50N or customized capacity, its Creep(30min),Non-linearity,Hysteresis and Repeatability ≤0.01%F.S. or can be customized.
2. Specifications
| Product name | Single Point Weight Sensor |
| Capacity | 0.1,0.2,0.5,1,2,5,10,20,50N or customized |
| Rated output | 1.0±20%mV/V or customized |
| Zero balance | ±1.5%F.S. or customized |
| Creep(30min) | ≤0.01%F.S. or customized |
| Non-linearity | ≤0.01%F.S. or customized |
| Hysteresis | ≤0.01%F.S. or customized |
| Repeatability | ≤0.01%F.S. or customized |
| Input resistance | 600~800Ω |
| Output resistance | 600~800Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~10V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60 ℃ |
| Operating temp range | -20~80 ℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | ⌀6x3000mm or customized |
| Weight | 0.15kg or customized |
| Material | Alloy steel or customized |
3. Dimension
Need to be customized
4. Application
0.1,0.2,0.5,1,2,5,10,20,50N Or Customized Single Point Weight Sensor FA1062 can be used for checkweighing.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
