Product Details:
|
| Product Name: | Shear Beam Load Cell | Capacity: | 10,20,50,100,200,500,1000,2000,5000kg Or Customized |
|---|---|---|---|
| Creep(30min): | ≤0.0215%F.S. Or Customized | Non-linearity: | ≤0.0205%F.S. Or Customized |
| Hysteresis: | ≤0.0215%F.S. Or Customized | Repeatability: | ≤0.0215%F.S. Or Customized |
| High Light: | 2000kg Shear Beam Load Cell,5000kg Shear Beam Load Cell,15v 10kg load cell |
||

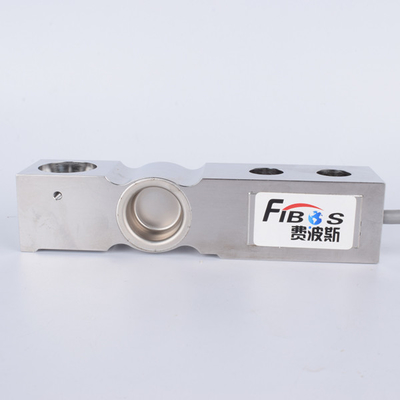

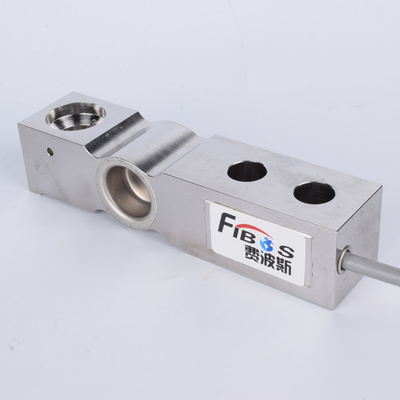

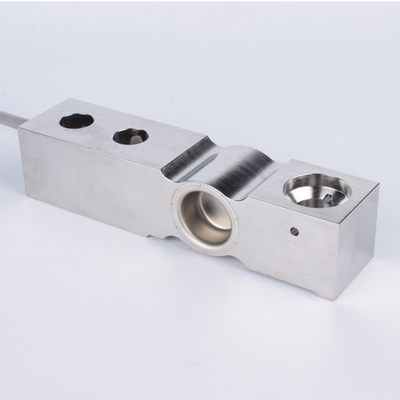

10,20,50,100,200,500,1000,2000,5000kg or customized Shear Beam Load Cell
1. Descriptions
10,20,50,100,200,500,1000,2000,5000kg or customized Shear Beam Load Cell FA516 is a model of our brand FIBOS FA5-Series, Shear Beam Load Cell FA516 can be measured load ranges from 10kg,20kg,50kg,100kg,200kg,500kg,1000kg,2000kg and 5000kg or customized capacity, its Temp.effect on output is 0.0175%F.S./10 ℃ and its Temp.effect on zero is 0.0125%F.S./10 ℃.
2. Specifications
| Product name | Shear Beam Load Cell |
| Capacity | 10,20,50,100,200,500,1000,2000,5000kg or customized |
| Rated output | 2.0±10%mV/V |
| Zero Balance | ±0.05mV/V |
| Creep(30min) | ≤0.0215%F.S. or customized |
| Non-linearity | ≤0.0205%F.S. or customized |
| Hysteresis | ≤0.0215%F.S. or customized |
| Repeatability | ≤0.0215%F.S. or customized |
| Input impedance | 390±5Ω |
| Output impedance | 350±5Ω |
| Temp.effect on output | 0.0175%F.S./10 ℃ |
| Temp.effect on zero | 0.0125%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5V |
| Maximum excitation | 12V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -10~50 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀5x3500mm or customized |
| Weight | 0.52kg or customized |
| Material | Stainless steel or customized |
| Max.platform size | 500mm*400mm |
3. Dimension
need to be customized
4. Application
10,20,50,100,200,500,1000,2000,5000kg or customized Shear Beam Load Cell FA516 can be applied to small reactor modules.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
