Product Details:
|
| Product Name: | Single Point Weight Sensor | Capacity: | 0.1,0.2,0.5,1,2,5,10,20,50t Or Customized |
|---|---|---|---|
| Rated Output: | 1.0±20%mV/V Or Customized | Zero Balance: | ±1.5%F.S. Or Customized |
| Creep(30min): | ≤0.07%F.S. Or Customized | Cable Size: | ⌀6x6000mm Or Customized |
| Highlight: | 50t single ended shear beam load cell,10v single ended shear beam load cell,800 ohm waterproof load cell |
||

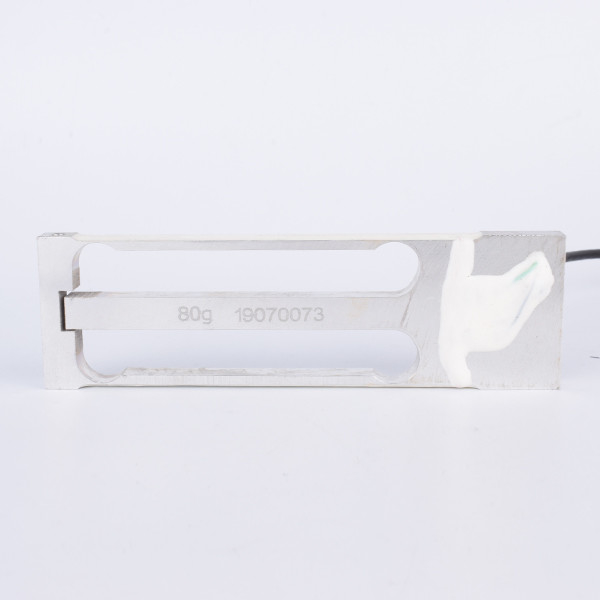

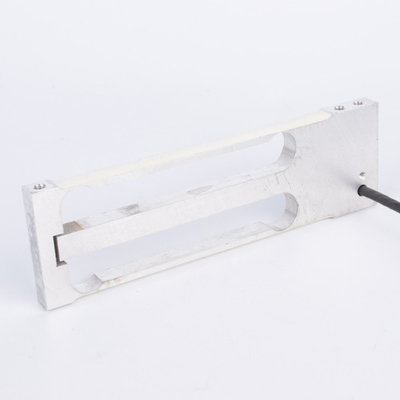

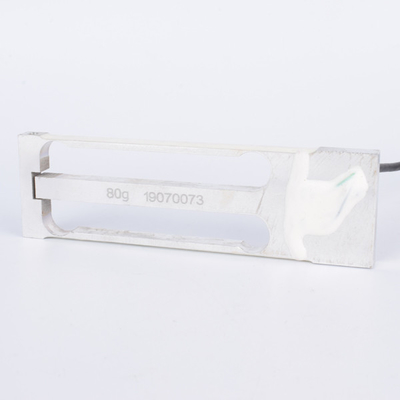

0.1,0.2,0.5,1,2,5,10,20,50t Or Customized Single Point Weight Sensor
1. Descriptions
0.1,0.2,0.5,1,2,5,10,20,50t Or Customized Single Point Weight Sensor FA540 is a model of our brand FIBOS FA5-Series, Single Point Weight Sensor FA540 can be used to measure weight ranges from 0.1t,0.2t,0.5t,1t,2t,5t,10t,20t and 50t or customized capacity, its Zero balance range is ±1.5%F.S. or could be customized.
2. Specifications
| Product name | Single Point Weight Sensor |
| Capacity | 0.1,0.2,0.5,1,2,5,10,20,50t or customized |
| Rated output | 1.0±20%mV/V or customized |
| Zero balance | ±1.5%F.S. or customized |
| Creep(30min) | ≤0.07%F.S. or customized |
| Non-linearity | ≤0.08%F.S. or customized |
| Hysteresis | ≤0.08%F.S. or customized |
| Repeatability | ≤0.08%F.S. or customized |
| Input resistance | 600~800Ω |
| Output resistance | 600~800Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~10V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60 ℃ |
| Operating temp range | -20~80 ℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | ⌀6x6000mm or customized |
| Weight | 0.85kg or customized |
| Material | Stainless steel or customized |
3. Dimension
Need to be customized
4. Application
0.1,0.2,0.5,1,2,5,10,20,50t Or Customized Single Point Weight Sensor FA540 can be used in packaging machines.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
