Product Details:
|
| Product Name: | Six Axis Force Sensor | Capacity: | Fx,Fy,Fz=50N; Mx,My,Mz=2Nm |
|---|---|---|---|
| Weight: | 0.12kg | Precision: | 0.1%F.S. |
| Supply Voltage: | 9-24VDC | Sampling Frequency: | 1000Hz |
| High Light: | 9v multi axis force sensor,50n multi axis force sensor,2nm load cell transducer |
||

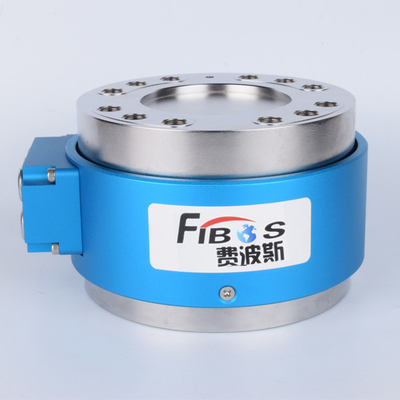

Fx Fy Fz 50N Mx My Mz 2Nm 0.1%F.S. Hard Aluminum Alloy Six Axis Force Sensor
1. Descriptions
Fx Fy Fz 50N Mx My Mz 2Nm 0.1%F.S. Hard Aluminum Alloy Six Axis Force Sensor FARS62A is a model of Six Axis Force Sensor, it belongs to FARS62 in our brand FIBOS FARS-Series, it can be got to measure multiple axis load Fx,Fy,Fz are 50N, Mx,My,Mz are 2Nm, its weight is 0.12kg, its shape makes it also look like FARS62.
2. Specifications
| Product name | Six Axis Force Sensor | ||||
| Model | FARS62A | ||||
| Fx, Fy [N] | 50 | ||||
| Fz [N] | 50 | ||||
| Mx,My[Nm] | 2 | ||||
| Mz [Nm] | 2 | ||||
| Diameter [mm] | 62 | ||||
| Height [mm] | 18 | ||||
| Material | Hard aluminum alloy | ||||
| Overload Level[%F.S.] | 300 | ||||
| Precision [%F.S.] | 0.1 | ||||
| Accuracy [%F.S.] | 0.5 | ||||
| Weight [kg] | 0.12 | ||||
| Supply voltage [VDC] | 9-24 | ||||
| Working Temperature[℃] | 0-80 | ||||
| Sampling Resolution [Bit] | 24 | ||||
| Sampling Frequency [Hz] | 1000 | ||||
| Protection Level | IP64 | ||||
| Communication Method | RS422/RS485/MODBUS/CAN/EtherCAT/EtherNET/USB/Analog | ||||
3. Dimension
4. Application
Fx Fy Fz 50N Mx My Mz 2Nm 0.1%F.S. Hard Aluminum Alloy Six Axis Force Sensor FARS62A could also be mainly used in robotic industry and automatic industry.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
