Product Details:
|
| Product Name: | Six Axis Force Sensor | Capacity: | Fx,Fy=400N, Fz=800N; Mx,My,Mz=30Nm |
|---|---|---|---|
| Weight: | 0.36kg | Sampling Frequency: | 1000Hz |
| Communication Method: | RS422/RS485/MODBUS/CAN | Precision: | 0.1%F.S. |
| High Light: | 400n Six Axis Force Sensor,aluminum Six Axis Force Sensor,1000hz force gauge load cell |
||

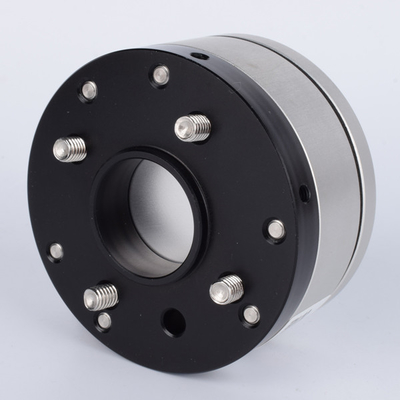

Fx Fy 400N Fz 800N Mx My Mz 30Nm Hard Aluminum Alloy Six Axis Force Sensor
1. Descriptions
Fx Fy 400N Fz 800N Mx My Mz 30Nm Hard Aluminum Alloy Six Axis Force Sensor FARS94D is a model of our brand FIBOS Six Axis Force Sensor category, it belongs to FARS94 which is in FARS-Series, Six Axis Force Sensor FARS94D can be used to measure six axis force, its Fx,Fy force are both 400N, its Fz force is 800N, its Mx,My,Mz force are the same 30N.m.
2. Specifications
| Product name | Six Axis Force Sensor | ||||
| Model | FARS94D | ||||
| Fx, Fy [N] | 400 | ||||
| Fz [N] | 800 | ||||
| Mx,My[Nm] | 30 | ||||
| Mz [Nm] | 30 | ||||
| Diameter [mm] | 94 | ||||
| Height [mm] | 26 | ||||
| Material | Hard aluminum alloy | ||||
| Overload Level[%F.S.] | 300 | ||||
| Precision [%F.S.] | 0.1 | ||||
| Accuracy [%F.S.] | 0.5 | ||||
| Weight [kg] | 0.36 | ||||
| Supply voltage [VDC] | 9-24 | ||||
| Working Temperature[℃] | 0-80 | ||||
| Sampling Resolution [Bit] | 24 | ||||
| Sampling Frequency [Hz] | 1000 | ||||
| Protection Level | IP64 | ||||
| Communication Method | RS422/RS485/MODBUS/CAN/EtherCAT/EtherNET/USB/Analog | ||||
3. Dimension
4. Application
Fx Fy 400N Fz 800N Mx My Mz 30Nm Hard Aluminum Alloy Six Axis Force Sensor FARS94D could be used for force measurement robot system in the field of science popularization.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
