Product Details:
|
| Product Name: | Miniature Force Sensor | Capacity: | 5,10,20,30,100kg |
|---|---|---|---|
| Rated Output: | 1.5±10%mV/V | Non-linearity: | ≤0.5%F.S. |
| Repeatability: | ≤0.5%F.S. | Material: | Stainless Steel |
| High Light: | 5kg Miniature Force Sensor,100kg Miniature Force Sensor,1.5mv v 10kg load cell |
||

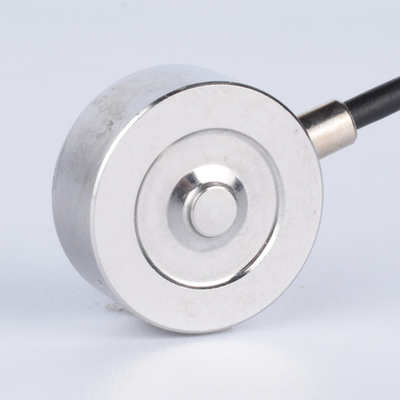

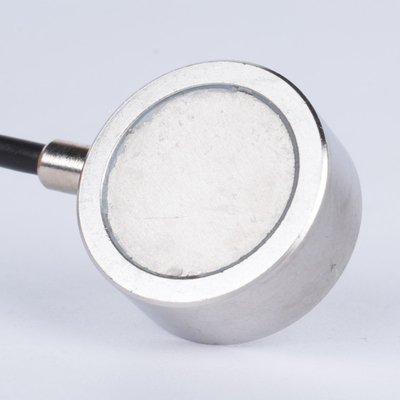

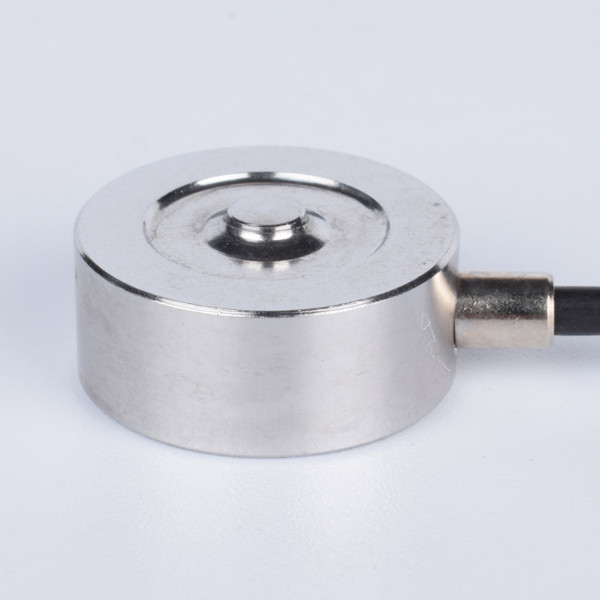

5-100kg Stainless Steel Miniature Force Sensor
1. Descriptions
5-100kg Stainless Steel Miniature Force Sensor FA104 is a model of our brand FIBOS FA1-Series, Miniature Force Transducer FA104 can be used to measure force ranges from 5kg,10kg,20kg,30kg up to 100kg capacity, its Creep(30min),Non-linearity,Hysteresis and Repeatability all ≤0.5%F.S., its Weight is 0.1kg.
2. Specifications
| Product name | Miniature Force Sensor |
| Capacity | 5,10,20,30,100kg |
| Rated output | 1.5±10%mV/V |
| Zero Balance | ±0.05mV/V |
| Creep(30min) | ≤0.5%F.S. |
| Non-linearity | ≤0.5%F.S. |
| Hysteresis | ≤0.5%F.S. |
| Repeatability | ≤0.5%F.S. |
| Input impedance | 800~1100Ω |
| Output impedance | 800~1100Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀3x3000mm |
| Weight | 0.1kg |
| Material | Stainless steel |
3. Dimension
4. Application
5-100kg Stainless Steel Miniature Force Sensor FA104 could be used for chemical fiber scales.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
