Product Details:
|
| Product Name: | Miniature Force Sensor | Capacity: | 1,2,5,10,20,50,100,200,500,1000kg Or Customized |
|---|---|---|---|
| Creep(30min): | ≤0.025%F.S. Or Customized | Non-linearity: | ≤0.023%F.S. Or Customized |
| Hysteresis: | ≤0.023%F.S. Or Customized | Repeatability: | ≤0.025%F.S. Or Customized |
| High Light: | 1mv/v miniature tension load cell,1kg miniature tension load cell,10v 2 kg load cell |
||
1,2,5,10,20,50,100,200,500,1000kg Or Customized Miniature Force Sensor
1. Descriptions

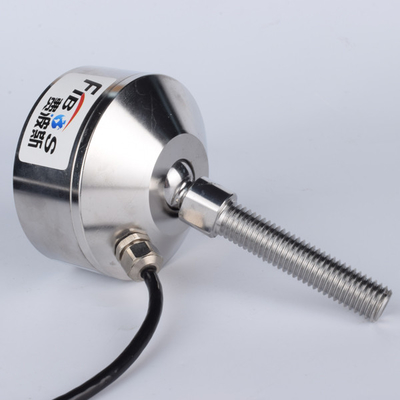

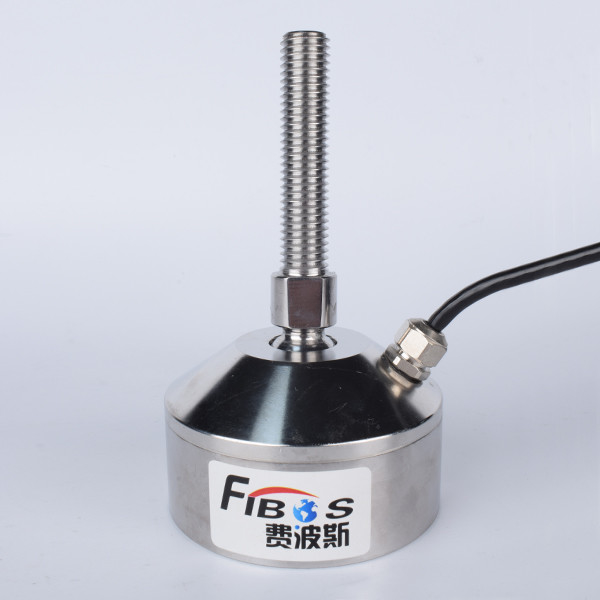

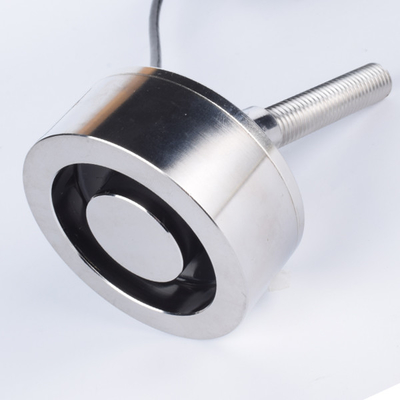

1,2,5,10,20,50,100,200,500,1000kg Or Customized Miniature Force Sensor FA135L is a model of our brand FIBOS FA1-Series, it belongs to FA135 which is in Miniature Force Sensor category, FA135L can be used to measure force 1kg,2kg,5kg,10kg,20kg,50kg,100kg,200kg,500kg and 1000kg or customized capacity, its Material is Stainless steel or can be customized.
2. Specifications
| Product name | Miniature Force Sensor |
| Capacity | 1,2,5,10,20,50,100,200,500,1000kg or customized |
| Rated output | 1.0±15%mV/V |
| Zero balance | ±0.05mV/V customized |
| Creep(30min) | ≤0.025%F.S. or customized |
| Non-linearity | ≤0.023%F.S. or customized |
| Hysteresis | ≤0.023%F.S. or customized |
| Repeatability | ≤0.025%F.S. or customized |
| Input resistance | 800~1100Ω |
| Output resistance | 800~1100Ω |
| Temp.effect on output | 0.05%F.S./10 C |
| Temp.effect on zero | 0.05%F.S./10 C |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~10V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60 ℃ |
| Operating temp range | -20~80 ℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | ⌀1.2x3000mm or customized |
| Weight | 0.19kg or customized |
| Material | Stainless steel or customized |
3. Dimension
Need to be customized
4. Application
1,2,5,10,20,50,100,200,500,1000kg Or Customized Miniature Force Sensor FA135L can be used in the automotive industry.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
