Product Details:
|
| Product Name: | Ring Force Sensor | Capacity: | 3t,5t |
|---|---|---|---|
| Rated Output: | 1.5±10%mV/V | Non-linearity: | ≤0.2%F.S. |
| Repeatability: | ≤0.1%F.S. | Material: | Stainless Steel |
| High Light: | 3t waterproof force sensor,5t waterproof force sensor,0.2kg ring load cell |
||

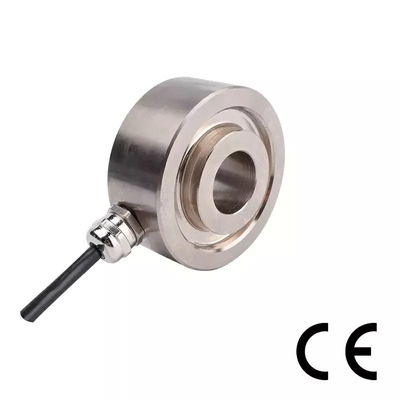

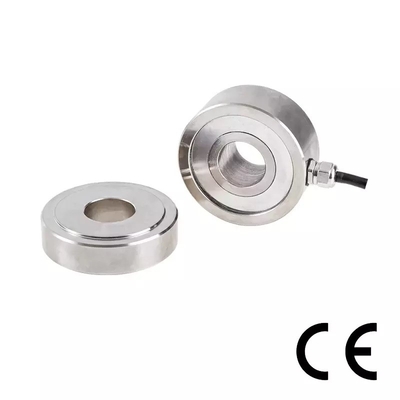

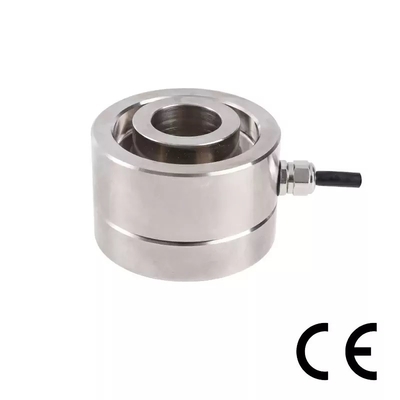

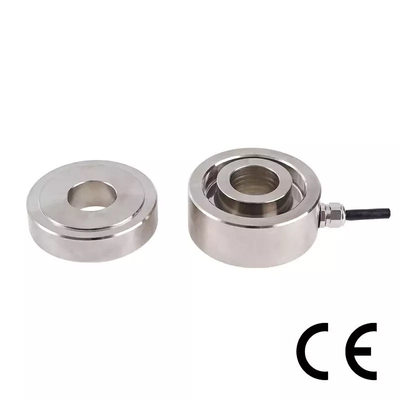

3-5t Stainless Steel Ring Force Sensor
1. Descriptions
3-5t Stainless Steel Ring Force Sensor FA167 is a model of our brand FIBOS FA1-Series, Ring Force Transducer FA167 can be used to measure force 3t and 5t capacity, its Zero Balance range is ±0.02mV/V, its Creep(30min) ≤0.05%F.S., its Non-linearity ≤0.2%F.S., its Hysteresis ≤0.3%F.S. and its Repeatability ≤0.1%F.S., its weight is 0.2kg.
2. Specifications
| Product name | Ring Force Sensor |
| Capacity | 3t,5t |
| Rated output | 1.5±10%mV/V |
| Zero Balance | ±0.02mV/V |
| Creep(30min) | ≤0.05%F.S. |
| Non-linearity | ≤0.2%F.S. |
| Hysteresis | ≤0.3%F.S. |
| Repeatability | ≤0.1%F.S. |
| Input impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀4x3000mm |
| Weight | 0.2kg |
| Material | Stainless steel |
3. Dimension
4. Application
3-5t Stainless Steel Ring Force Sensor FA167 can be used for hot and cold press pressure testing.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
