Product Details:
|
| Product Name: | Ring Force Sensor | Capacity: | 10,20,50,100,200,500kg |
|---|---|---|---|
| Rated Output: | 1.0±10%mV/V | Non-linearity: | ≤0.2%F.S. |
| Repeatability: | ≤0.2%F.S. | Material: | Alloy Steel |
| High Light: | 10kg load cell ring,500kg load cell ring,0.3% strain gauge force sensor |
||

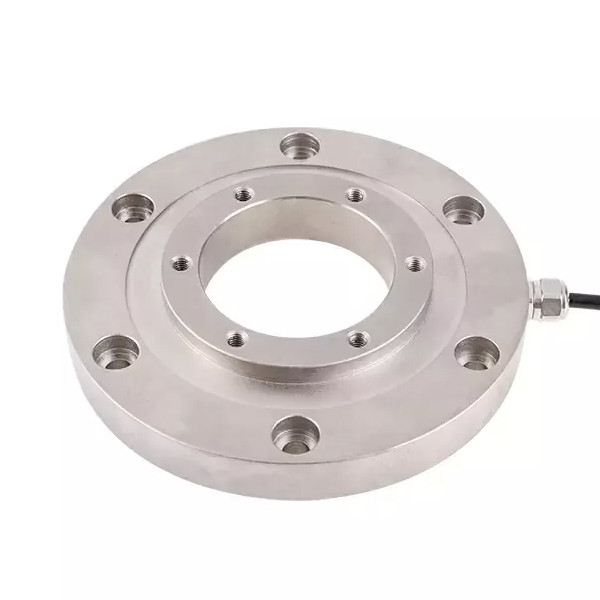

10-500kg Alloy Steel Ring Force Sensor
1. Descriptions
10-500kg Alloy Steel Ring Force Sensor FA128 is a model of our brand FIBOS FA1-Series, Ring Force Sensor FA128 can be used to measure force 10kg,20kg,50kg,100kg,200kg and 500kg capacity, its Rated output range is 1.0±10%mV/V, its Zero Balance range is ±1%mV/V, its Creep(30min) ≤0.1%F.S., its Non-linearity and Repeatability both ≤0.2%F.S., and its Hysteresis ≤0.3%F.S..
2. Specifications
| Product name | Ring Force Sensor |
| Capacity | 10,20,50,100,200,500kg |
| Rated output | 1.0±10%mV/V |
| Zero Balance | ±1%mV/V |
| Creep(30min) | ≤0.1%F.S. |
| Non-linearity | ≤0.2%F.S. |
| Hysteresis | ≤0.3%F.S. |
| Repeatability | ≤0.2%F.S. |
| Input impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀4x3000mm |
| Weight | 0.4kg |
| Material | Alloy steel |
3. Dimension
4. Application
10-500kg Alloy Steel Ring Force Sensor FA128 can be used for keypad feel tester.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
