Product Details:
|
| Product Name: | Ring Force Sensor | Capacity: | 1,2,3,5,10,20kN |
|---|---|---|---|
| Creep(30min): | ≤0.1%F.S. | Non-linearity: | ≤0.1%F.S. |
| Hysteresis: | ≤0.2%F.S. | Repeatability: | ≤0.1%F.S. |
| High Light: | 1.5mv v Ring Force Sensor,2kn Ring Force Sensor,10v 10kn load cell |
||

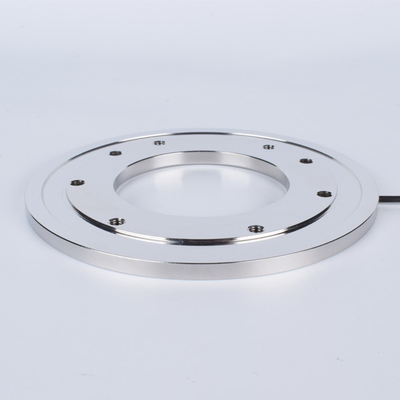

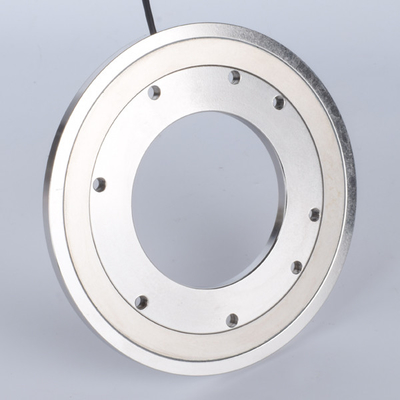

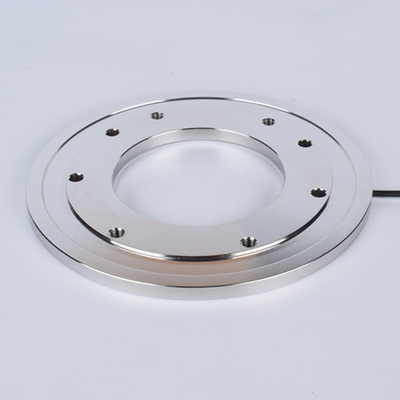

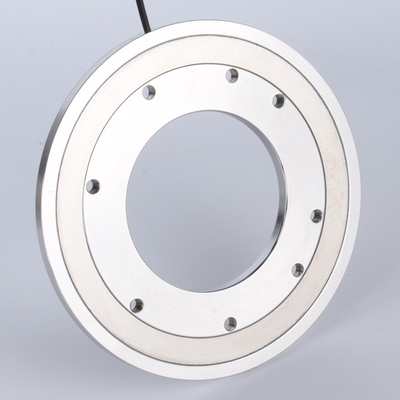

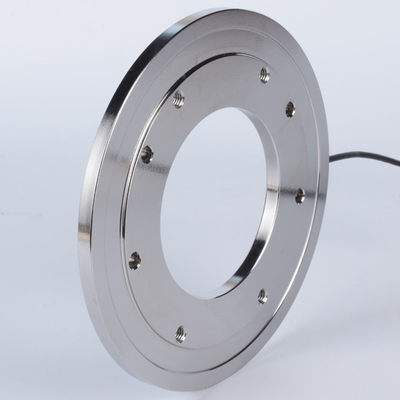

1,2,3,5,10,20kN Ring Force Sensor
1. Descriptions
1,2,3,5,10,20kN Ring Force Sensor FA1028 is a special model of our brand FIBOS FA1-Series, it also belongs to Ring Force Sensor category. FA1028 can be used to measure force 1kN,2kN,3kN,5kN,10kN and 20kN or customized capacity, its Creep(30min),Non-linearity and Repeatability all ≤0.1%F.S. or can be customized, its Hysteresis ≤0.2%F.S. or can also be customized.
2. Specifications
| Product name | Ring Force Sensor |
| Capacity | 1,2,3,5,10,20kN or customized |
| Rated output | 1.5±20%mV/V |
| Zero Balance | ±5%mV/V or customized |
| Creep(30min) | ≤0.1%F.S. or customized |
| Non-linearity | ≤0.1%F.S. or customized |
| Hysteresis | ≤0.2%F.S. or customized |
| Repeatability | ≤0.1%F.S. or customized |
| Input impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 10V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀4x3000mm or customized |
| Material | Stainless steel or customized |
3. Dimension
Need to be customized
4. Application
1,2,3,5,10,20kN Ring Force Sensor FA1028 could be used for other industrial control force value detection.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
