Product Details:
|
| Product Name: | Force Torque Sensor | Capacity: | 1,2,3,5,10,20,30,50,100N.m |
|---|---|---|---|
| Rated Output: | 1.5±10%mV/V | Non-linearity: | ≤0.2%F.S. |
| Repeatability: | ≤0.1%F.S. | Material: | Aluminum Alloy / Stainless Steel |
| High Light: | aluminum Force Torque Sensor,stainless steel Force Torque Sensor,0.2% static torque transducer |
||

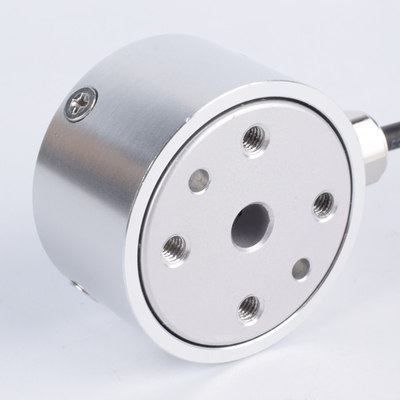

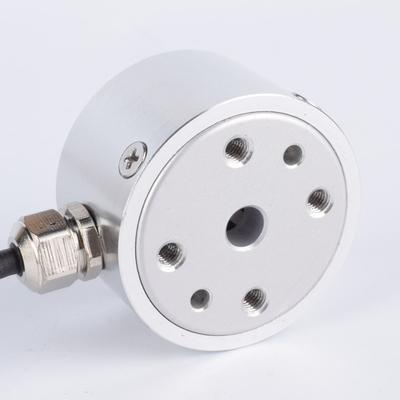

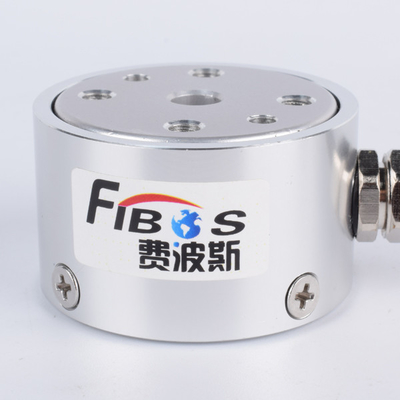

1-100N.M Aluminum Alloy Stainless Steel Static Torque Sensor Force Torque Sensor
1. Descriptions
1-100N.M Aluminum Alloy Stainless Steel Static Torque Sensor Force Torque Sensor FA602 is a model of our brand FIBOS FA6-Series, Force Torque Sensor FA602 can be used to measure Static Torque force 1N.m,2N.m,3N.m,5N.m,10N.m,20N.m,30N.m,50N.m and 100N.m capacity, its Zero Balance range is ±0.02mV/V, its Cable size is ⌀3x3000mm.
2. Specifications
| Product name | Force Torque Sensor |
| Capacity | 1,2,3,5,10,20,30,50,100N.m |
| Rated output | 1.5±10%mV/V |
| Zero Balance | ±0.02mV/V |
| Creep(30min) | ≤0.2%F.S. |
| Non-linearity | ≤0.2%F.S. |
| Hysteresis | ≤0.3%F.S. |
| Repeatability | ≤0.1%F.S. |
| Input impedance | 350±5Ω |
| Output impedance | 350±5Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe overload | 120%F.S. |
| Ultimate overload | 150%F.S. |
| Cable size | ⌀3x3000mm |
| Weight | 0.3kg |
| Material | Aluminum Alloy / Stainless Steel |
3. Dimension
4. Application
1-100N.M Aluminum Alloy Stainless Steel Static Torque Sensor Force Torque Sensor FA602 can be applied in the test system of the testing machine.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
