Product Details:
|
| Product Name: | Force Torque Sensor | Capacity: | 5,10,20,50,100,200,500N.m |
|---|---|---|---|
| Rated Output: | 1.0~1.5mV/V | Non-linearity: | ≤0.2%F.S. |
| Safe Overload: | 120%F.S. | IP Class: | IP66 |
| High Light: | ip66 rotary torque measurement,5nm rotary torque measurement,500nm inline rotary torque transducer |
||

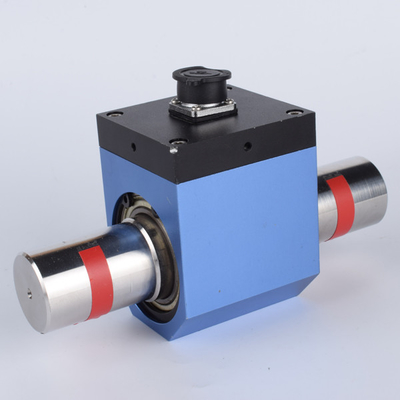

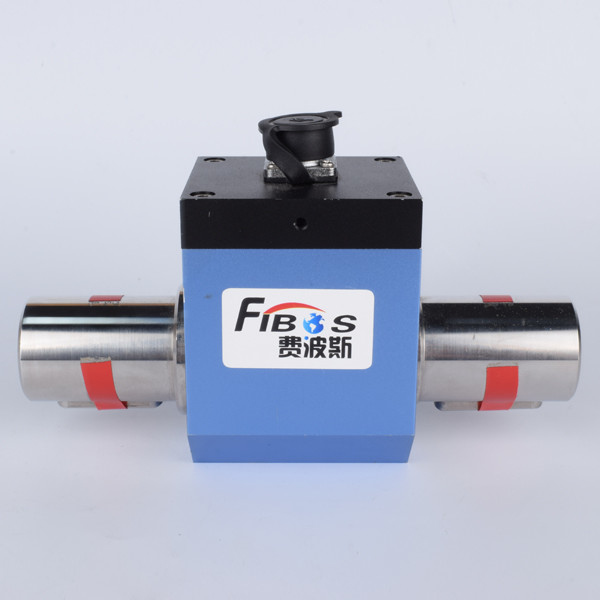

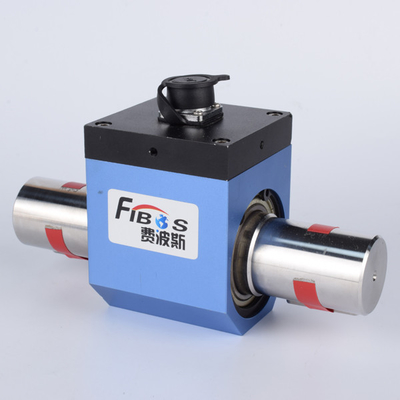

5-500N.M IP66 Dynamic Torque Sensor Force Torque Sensor
1. Descriptions
5-500N.M IP66 Dynamic Torque Sensor Force Torque Sensor FA603 is a model of our brand FIBOS FA6-Series, Dynamic Torque Sensor Force Torque Sensor FA603 can be used to measure dynamic torque force ranges from 5N.m,10N.m,20N.m,50N.m,100N.m,200N.m and 500N.m capacity, its Rated output range is 1.0~1.5mV/V, its Zero Balance range is ±0.01mV/V.
2. Specifications
| Product name | Force Torque Sensor |
| Capacity | 5,10,20,50,100,200,500N.m |
| Rated output | 1.0~1.5mV/V |
| Zero Balance | ±0.01mV/V |
| Creep(30min) | ≤0.1%F.S. |
| Non-linearity | ≤0.2%F.S. |
| Hysteresis | ≤0.2%F.S. |
| Repeatability | ≤0.1%F.S. |
| Input impedance | 350/700±10Ω |
| Output impedance | 350/700±10Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥2000MΩ/100V(DC) |
| Recommended excitation1 | ±15V(Output frequency signal) |
| Recommended excitation2 | 24V(Output analog signal) |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~60 ℃ |
| Safe overload | 120%F.S. |
| Ultimate overload | 150%F.S. |
| Cable size | 3m |
| IP Class | IP66 |
3. Dimension
4. Application
5-500N.M IP66 Dynamic Torque Sensor Force Torque Sensor FA603 could be used for speed reducers.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
