Product Details:
|
| Product Name: | Force Torque Sensor | Capacity: | 10,20,50,100,200,500t Or Customized |
|---|---|---|---|
| Creep(30min): | ≤0.15%F.S. Or Customized | Non-linearity: | ≤0.15%F.S. Or Customized |
| Hysteresis: | ≤0.15%F.S. Or Customized | Repeatability: | ≤0.13%F.S. Or Customized |
| High Light: | 20t Force Torque Sensor,50t Force Torque Sensor,10t dynamic torque transducer |
||

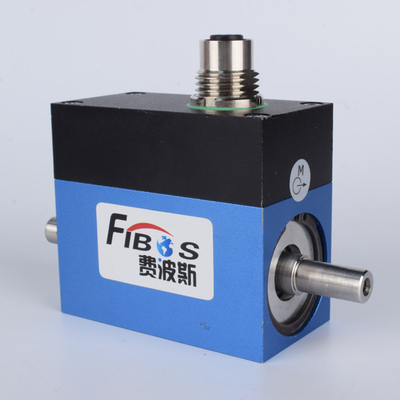

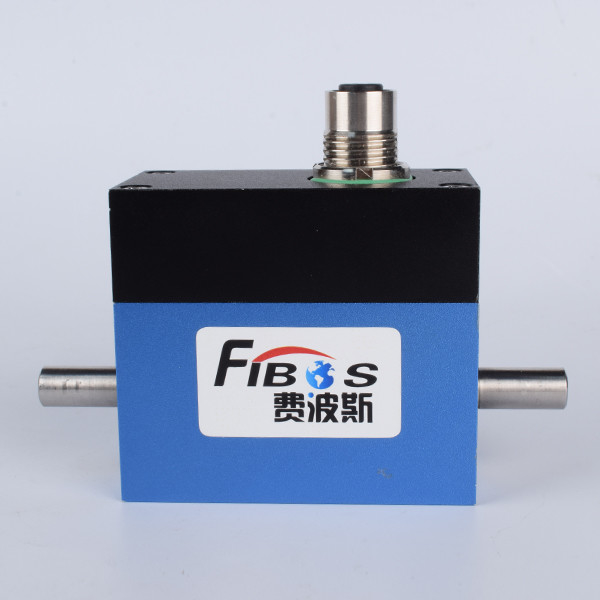

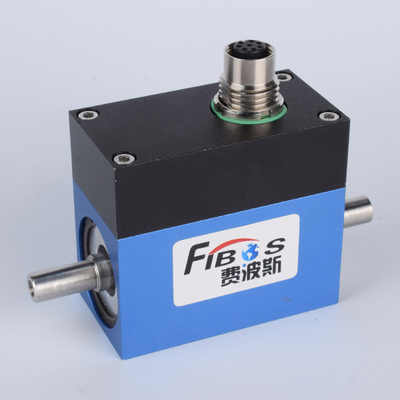

10,20,50,100,200,500t Or Customized Dynamic Torque Sensor Force Torque Sensor
1. Descriptions
10,20,50,100,200,500t Or Customized Dynamic Torque Sensor Force Torque Sensor FA607A belongs to FA607 which is in Dynamic Torque Sensor Force Torque Sensor category of our brand FIBOS FA6-Series, Dynamic Torque Sensor Force Torque Sensor FA607 its Creep(30min),Non-linearity and Hysteresis all ≤0.15%F.S. or can be customized, its Repeatability ≤0.13%F.S. or customized.
2. Specifications
| Product name | Dynamic Torque Sensor |
| Capacity | 10,20,50,100,200,500t or customized |
| Rated output | 2.0±1%mV/V |
| Zero Balance | ±1%F.S. |
| Creep(30min) | ≤0.15%F.S. or customized |
| Non-linearity | ≤0.15%F.S. or customized |
| Hysteresis | ≤0.15%F.S. or customized |
| Repeatability | ≤0.13%F.S. or customized |
| Input impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Temp.effect on output | 0.02%F.S./10 ℃ |
| Temp.effect on zero | 0.02%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -10~70 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀6x5000mm or customized |
3. Dimension
Need to be customized
4. Application
10,20,50,100,200,500t Or Customized Dynamic Torque Sensor Force Torque Sensor FA607A can be used for parts test stands.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
