Product Details:
|
| Product Name: | Force Torque Sensor | Capacity: | 100,200,1000,2000,3000N.m Or Customized |
|---|---|---|---|
| Creep(30min): | ≤0.02%F.S. Or Customized | Non-linearity: | ≤0.02%F.S. Or Customized |
| Hysteresis: | ≤0.018%F.S. Or Customized | Repeatability: | ≤0.02%F.S. Or Customized |
| High Light: | 100nm inline torque measurement,static inline torque measurement,200nm load cell for torque measurement |
||

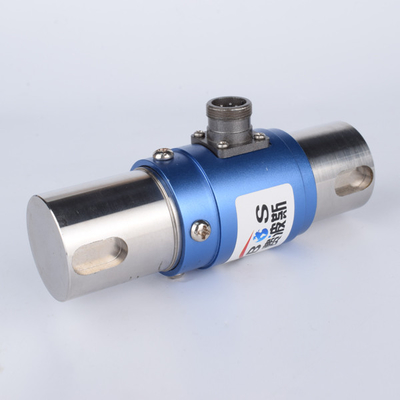

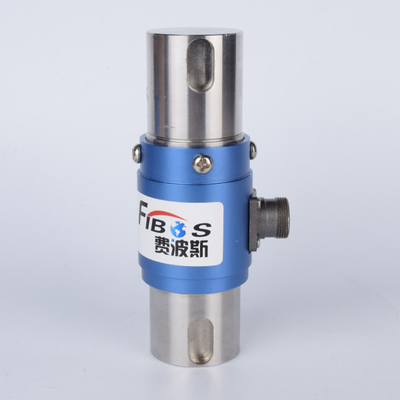

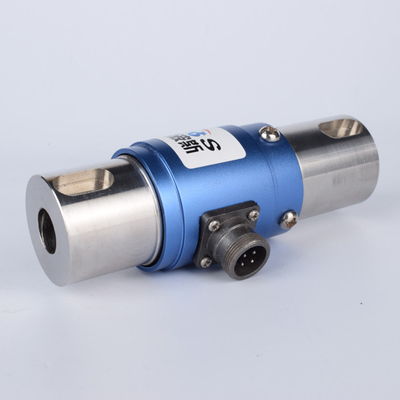

100,200,1000,2000,3000N.m Or Customized Static Torque Sensor Force Torque Sensor
1. Descriptions
100,200,1000,2000,3000N.m Or Customized Static Torque Sensor Force Torque Sensor FA625B belongs to FA625 which belongs to Static Torque Sensor of Force Torque Sensor category, FA625B can be used to measure Static Torque force 100N.m,200N.m,1000N.m,2000N.m and 3000N.m or customized capacity, its Cable size is ⌀6x4500mm or can be customized.
2. Specifications
| Product name | Force Torque Sensor |
| Capacity | 100,200,1000,2000,3000N.m or customized |
| Rated output | 2.0±1%mV/V |
| Zero Balance | ±1%F.S. |
| Creep(30min) | ≤0.02%F.S. or customized |
| Non-linearity | ≤0.02%F.S. or customized |
| Hysteresis | ≤0.018%F.S. or customized |
| Repeatability | ≤0.02%F.S. or customized |
| Input impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Temp.effect on output | 0.02%F.S./10 ℃ |
| Temp.effect on zero | 0.02%F.S./10 C |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -10~70 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀6x4500mm or customized |
3. Dimension
Need to be customized
4. Application
100,200,1000,2000,3000N.M Or Customized Static Torque Sensor Force Torque Sensor FA625B could be used to make viscometers.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
