Product Details:
|
| Product Name: | Weighing Module | Capacity: | 1,2,5,10,20,50,75,100kN |
|---|---|---|---|
| Rated Output: | 1.5±10%mV/V | Non-linearity: | ≤0.2%F.S. |
| Material: | Stainless Steel | IP Class: | IP67 |
| High Light: | IP67 Weighing Module,stainless steel Weighing Module,1.5mv v platform scale load cell |
||

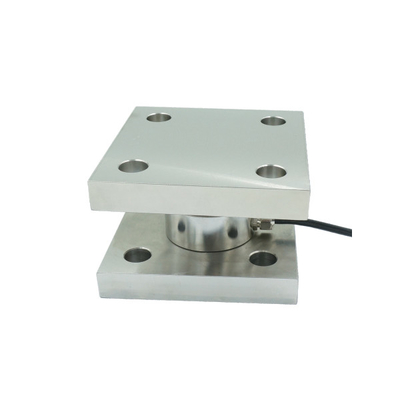

1-100kN IP67 Stainless Steel Weighing Module
1. Descriptions
1-100kN IP67 Stainless Steel Weighing Module FA804 is a model of our brand FIBOS FA8-Series, Weighing Module FA804 can be used to measure load 1kN,2kN,5kN,10kN,20kN,50kN,75kN and 100kN capacity, its Zero Balance range is ±0.03mV/V, its Creep(30min) ≤0.05%F.S., its Non-linearity ≤0.2%F.S., its Hysteresis and Repeatability both ≤0.1%F.S..
2. Specifications
| Product name | Weighing Module |
| Capacity | 1,2,5,10,20,50,75,100kN |
| Rated output | 1.5±10%mV/V |
| Zero Balance | ±0.03mV/V |
| Creep(30min) | ≤0.05%F.S. |
| Non-linearity | ≤0.2%F.S. |
| Hysteresis | ≤0.1%F.S. |
| Repeatability | ≤0.1%F.S. |
| Input resistance | 780±20Ω |
| Output resistance | 700±10Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀4x4000mm |
| Material | Stainless steel |
| IP Class | IP67 |
3. Dimension
4. Application
1-100kN IP67 Stainless Steel Weighing Module FA804 could be used in sintering furnaces in the cement industry.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
