Product Details:
|
| Product Name: | Need To Be Customized | Capacity: | 50,100,300,500,1000,3000,5000,10000,30000,50000,100000,300000,500000N Or Customized |
|---|---|---|---|
| Rated Output: | 1.5±0.2%mV/V Or Customized | Creep(30min): | ≤0.12%F.S. Or Customized |
| Non-linearity: | ≤0.11%F.S. Or Customized | Cable Size: | ⌀4X3500mm Or Customized |
| High Light: | 50n Weighing Module,500n Weighing Module,5v parallel beam load cell |
||

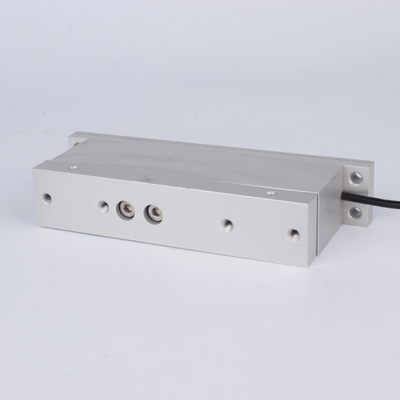

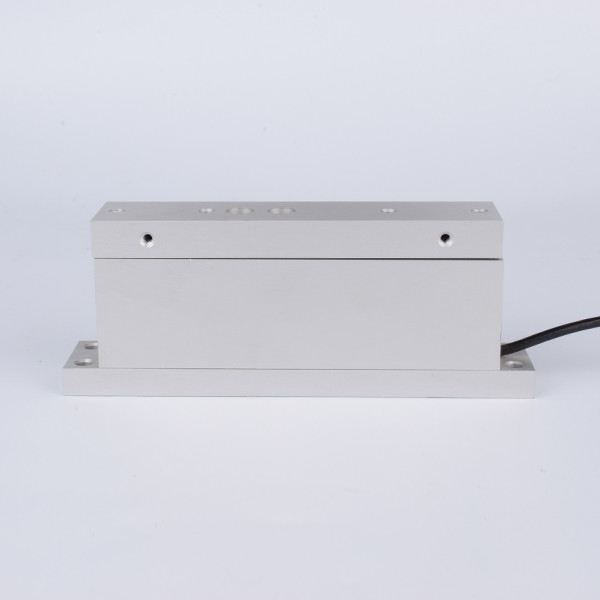

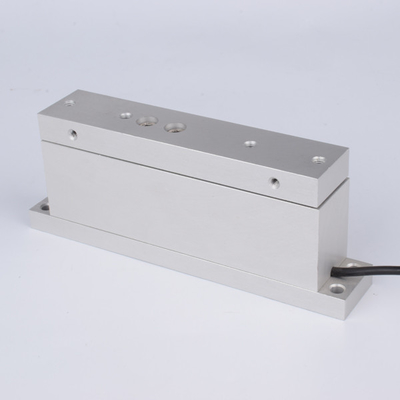

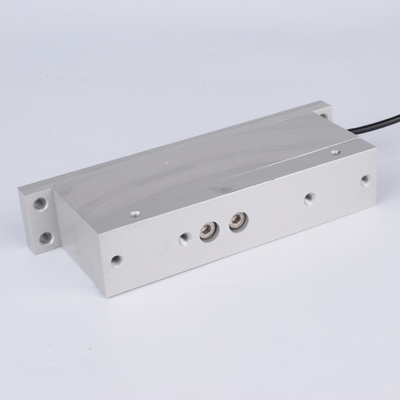

50,100,300,500,1000,3000,5000,10000,30000,50000,100000,300000,500000N Or Customized Parallel Beam Weighing Module
1. Descriptions
50,100,300,500,1000,3000,5000,10000,30000,50000,100000,300000,500000N Or Customized Parallel Beam Weighing Module FA821B belongs to FA821 which is in Weighing Module category of our brand FIBOS FA8-Series, FA821B can be used to measure weight 50N,100N,300N,500N,1000N,3000N,5000N,10000N,30000N,50000N,100000N,300000N and 500000N or customized capacity.
2. Specifications
| Product name | Weighing Module |
| Capacity | 50,100,300,500,1000,3000,5000,10000,30000,50000,100000,300000,500000N or customized |
| Rated output | 1.5±0.2%mV/V or customized |
| Zero Balance | ±1%mV/V |
| Creep(30min) | ≤0.12%F.S. or customized |
| Non-linearity | ≤0.11%F.S. or customized |
| Hysteresis | ≤0.13%F.S. or customized |
| Repeatability | ≤0.11%F.S. or customized |
| Input resistance | 385±10Ω |
| Output resistance | 350±1Ω |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated temp range | -10~40 ℃ |
| Operating temp range | -40~65 ℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | ⌀4X3500mm or customized |
| IP Class | IP66 or customized |
3. Dimension
Need to be customized
4. Application
50,100,300,500,1000,3000,5000,10000,30000,50000,100000,300000,500000N Or Customized Parallel Beam Weighing Module FA821B can be used for truck scale.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
