Product Details:
|
| Product Name: | Weighing Module | Capacity: | 10-200kg |
|---|---|---|---|
| Rated Output: | 2.0±10%mV/V | Non-linearity: | ≤0.03%F.S. |
| Material: | Stainless / Alloy Steel | IP Class: | IP65(<500kg) IP68(≥500kg) |
| High Light: | 10kg weighing scale module,200kg weighing scale module,IP68 Stainless Steel Load Cell |
||

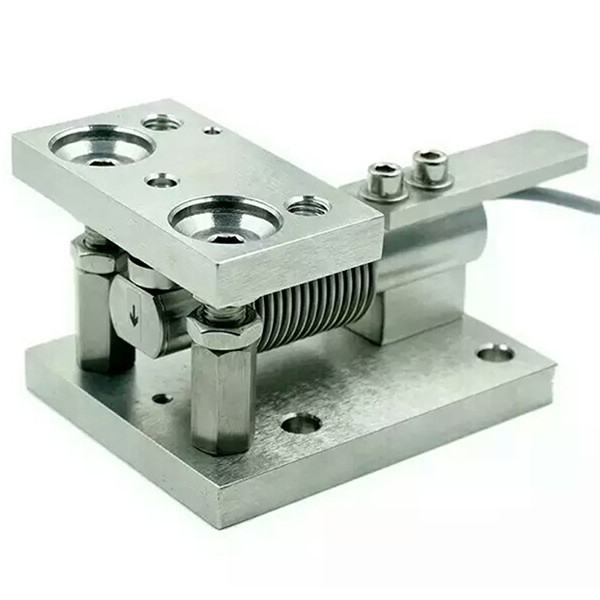

10-200kg IP65 IP68 Stainless Alloy Steel Weighing Module
1. Descriptions
10-200kg IP65 IP68 Stainless Alloy Steel Weighing Module FA802 is a model of our brand FIBOS FA8-Series, Weighing Module FA802 can be used to measure load ranges from 10kg up to 200kg, its Rated output range is 2.0±10%mV/V, its Zero Balance range is ±0.02mV/V, its Creep(30min),Non-linearity,Hysteresis and Repeatability all ≤0.03%F.S..
2. Specifications
| Product name | Weighing Module |
| Capacity | 10-200kg |
| Rated output | 2.0±10%mV/V |
| Zero Balance | ±0.02mV/V |
| Creep(30min) | ≤0.03%F.S. |
| Non-linearity | ≤0.03%F.S. |
| Hysteresis | ≤0.03%F.S. |
| Repeatability | ≤0.03%F.S. |
| Input resistance | 385±5Ω |
| Output resistance | 350±5Ω |
| Temp.effect on output | 0.025%F.S./10 ℃ |
| Temp.effect on zero | 0.025%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 10V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | ⌀5x6000mm |
| Material | Stainless / Alloy Steel |
| IP Class |
IP65(<500kg) IP68(≥500kg) |
3. Dimension
4. Application
10-200kg IP65 IP68 Stainless Alloy Steel Weighing Module FA802 could be used in the construction industry for concrete mixing.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
