Product Details:
|
| Product Name: | Spoke Type Load Cell | Capacity: | 50,100,200,500kg |
|---|---|---|---|
| Rated Output: | 1.5~2.0mV/V | Non-linearity: | ≤0.1%F.S. |
| Temp.effect On Output: | 0.05%F.S./10 ℃ | Material: | Stainless Steel |
| High Light: | 0.1% stainless steel load cell,50kg stainless steel load cell,500kg strain gauge force sensor |
||
50kg 100kg 200kg 500kg ≤0.1%F.S. Stainless Steel Spoke Type Load Cell
1. Descriptions

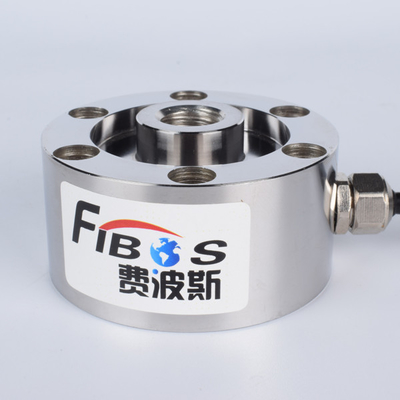

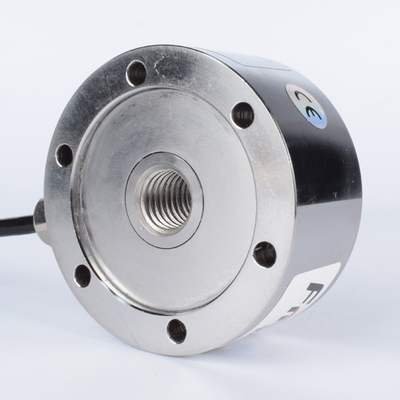

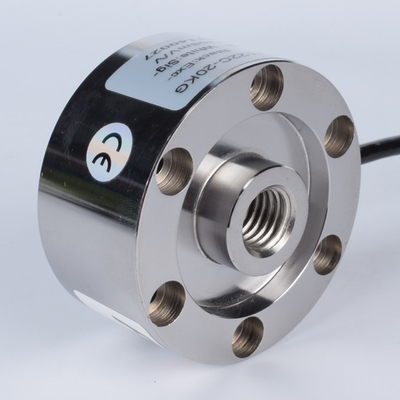

50kg 100kg 200kg 500kg ≤0.1%F.S. Stainless Steel Spoke Type Load Cell FA122C is a model of our brand FIBOS FA1-Series, Spoke Type Load Cell FA122C can be used to measure load ranges from 50kg,100kg,200kg up to 500kg capacity, its Cable size is ⌀4x3m and its material is Stainless steel, its Rated output range is 1.5~2.0mV/V.
2. Specifications
| Product name | Spoke Type Load Cell |
| Capacity | 50,100,200,500kg |
| Rated output | 1.5~2.0mV/V |
| Zero Balance | ±1%mV/V |
| Creep(30min) | ≤0.05%F.S. |
| Non-linearity | ≤0.1%F.S. |
| Hysteresis | ≤0.2%F.S. |
| Repeatability | ≤0.1%F.S. |
| Input impedance | 780±20Ω |
| Output impedance | 700±5Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 10V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀4x3m |
| Material | Stainless steel |
3. Dimension
4. Application
50kg 100kg 200kg 500kg ≤0.1%F.S. Stainless Steel Spoke Type Load Cell FA122C can be applied for all kinds of electronic weighing equipment.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
