Product Details:
|
| Product Name: | Spoke Type Load Cell | Capacity: | 50,70t |
|---|---|---|---|
| Rated Output: | 2.0±1%mV/V | Non-linearity: | ≤0.1%F.S. |
| Repeatability: | ≤0.05%F.S. | Safe Overload: | 150%F.S. |
| High Light: | Aviation plug 50t load cell,700 ohm 50t load cell,70t tension force sensor |
||

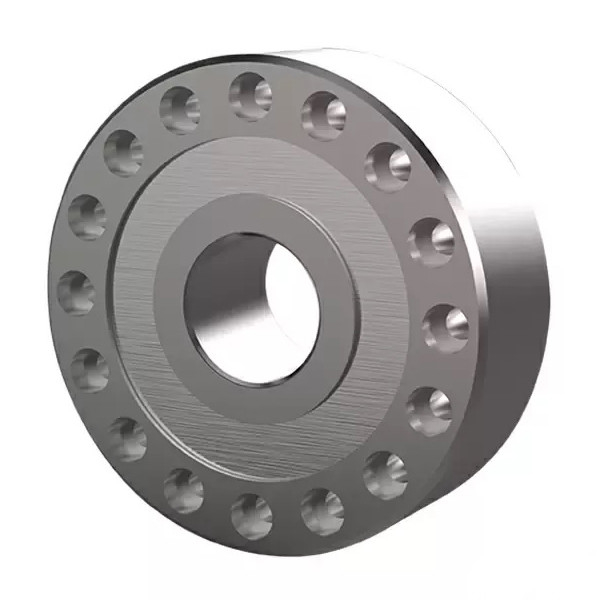

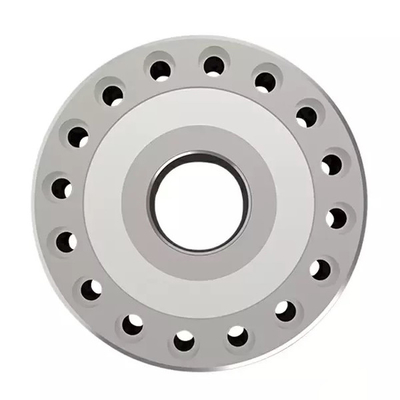

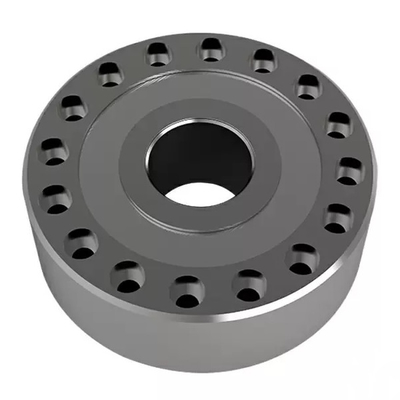

50-70t Spoke Type Load Cell
1. Descriptions
50-70t Spoke Type Load Cell FA120C is a model of our brand FIBOS FA1-Series, it belongs to FA120 which is in Spoke Type Load Cell category, FA120C can be used to measure load 50t and 70t capacity, its Zero Balance range is ±1%F.S., its Creep(30min),Non-linearity,Hysteresis and Repeatability all ≤0.05%F.S..
2. Specifications
| Product name | Spoke Type Load Cell |
| Capacity | 50,70t |
| Rated output | 2.0±1%mV/V |
| Zero Balance | ±1%F.S. |
| Creep(30min) | ≤0.1%F.S. |
| Non-linearity | ≤0.1%F.S. |
| Hysteresis | ≤0.1%F.S. |
| Repeatability | ≤0.05%F.S. |
| Input impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -10~70 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | Aviation plug ⌀6x5m |
3. Dimension
4. Application
50-70t Spoke Type Load Cell FA120C can be used for dry powder mixers in the construction industry.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
