Product Details:
|
| Product Name: | Spoke Type Load Cell | Capacity: | 20,50,100,200,500kg Or Customized |
|---|---|---|---|
| Creep(30min): | ≤0.05%F.S. Or Customized | Non-linearity: | ≤0.03%F.S. Or Customized |
| Hysteresis: | ≤0.05%F.S. Or Customized | Repeatability: | ≤0.05%F.S. Or Customized |
| High Light: | fibos 0.05 force pressure sensor,fibos 0.05 force pressure sensors,0.05 force pressure sensors fibos |
||

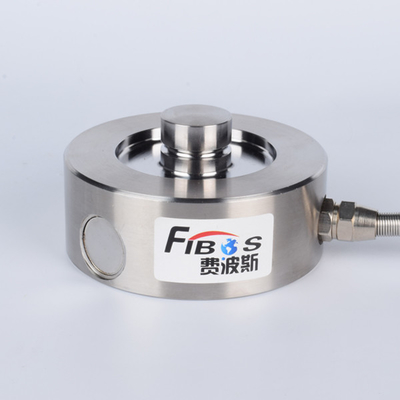

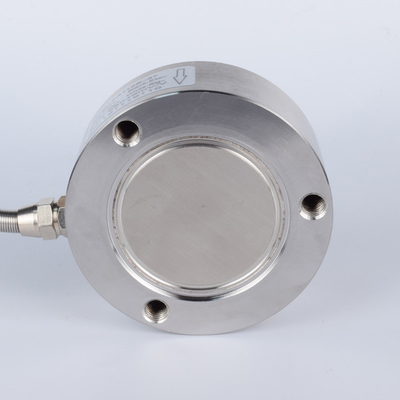

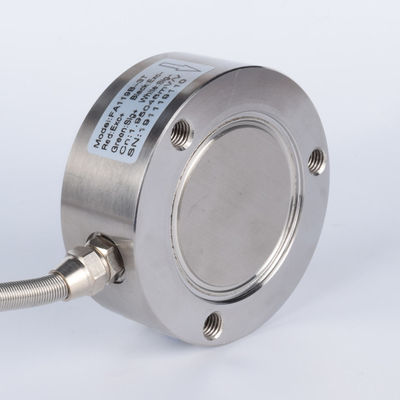

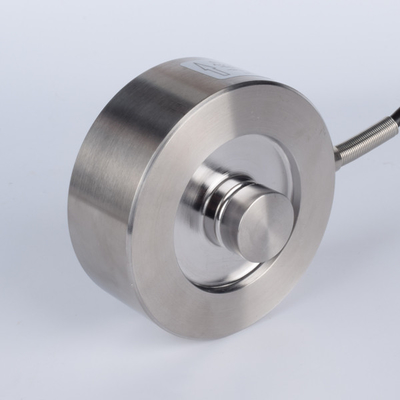

20,50,100,200,500kg Or Customized Spoke Type Load Cell
1. Descriptions
20,50,100,200,500kg Or Customized Spoke Type Load Cell FA119B is a model of our brand FIBOS FA1-Series, it belongs to FA119 which is in Spoke Type Load Cell category, FA119B can be used to measure load 20kg,50kg,100kg,200kg and 500kg or customized capacity, its Rated output range is 1.5±15%mV/V, its Cable size is ⌀1.2x3000mm or customized length.
2. Specifications
| Product name | Spoke Type Load Cell |
| Capacity | 20,50,100,200,500kg or customized |
| Rated output | 1.5±15%mV/V |
| Zero balance | ±0.05mV/V |
| Creep(30min) | ≤0.05%F.S. or customized |
| Non-linearity | ≤0.03%F.S. or customized |
| Hysteresis | ≤0.05%F.S. or customized |
| Repeatability | ≤0.05%F.S. or customized |
| Input resistance | 800~1100Ω |
| Output resistance | 800~1100Ω |
| Temp.effect on output | 0.05%F.S./10 C |
| Temp.effect on zero | 0.05%F.S./10 C |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~10V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60 ℃ |
| Operating temp range | -20~80 ℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | ⌀1.2x3000mm or customized |
| Weight | 0.3kg or customized |
| Material | Stainless steel or customized |
3. Dimension
Need to be customized
4. Application
20,50,100,200,500kg Or Customized Spoke Type Load Cell FA119B can be used for postal scales.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
