Product Details:
|
| Product Name: | Torque Force Sensor | Capacity: | 0.1,0.2,0.5,1,2,3,5,10Nm |
|---|---|---|---|
| Creep(30min): | ≤0.05%F.S. Or Customized | Non-linearity: | ≤0.08%F.S. Or Customized |
| Hysteresis: | ≤0.05%F.S. Or Customized | Repeatability: | ≤0.07%F.S. Or Customized |
| Input Impedance: | 350±5Ω | Recommended Excitation: | 5~15V |
| Material: | Aluminium Alloy | ||
| High Light: | 10v 3 Axis Force Sensor,xyz 3 Axis Force Sensor,5000kg strain gauge load cell |
||

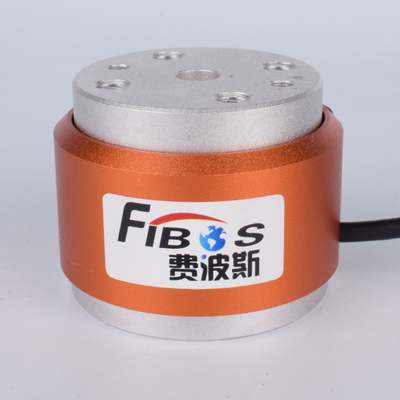

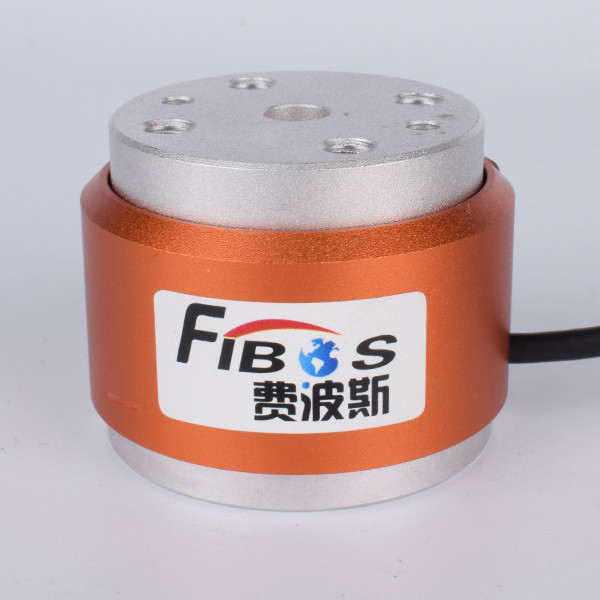

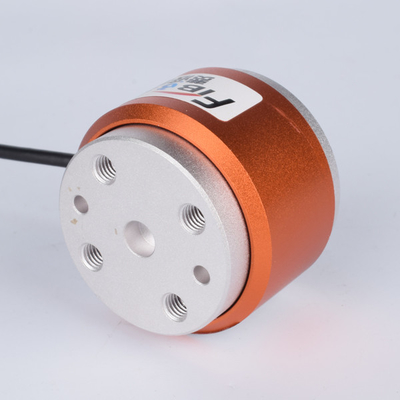

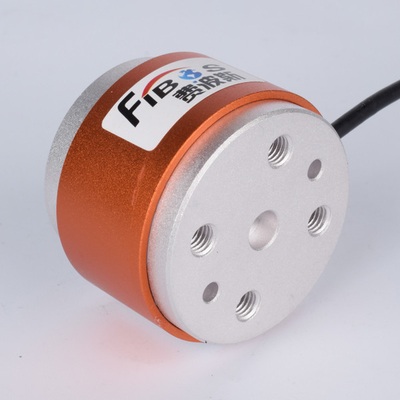

FA602B Miniature 6 Dof Force Sensor Multi Aixs Component Load Cell
1. Descriptions
1. Static torque sensor with small range;
2. Double flange installation, easy to use;
3. Protection grade IP65;
4. Used for static, non-continuous rotation torque measurement.
2. Specifications
| Product name | Torque Force Sensor |
| Capacity | 0.1,0.2,0.5,1,2,3,5,10Nm |
| Rated output | 1.5±10%mV/V |
| Zero Balance | ±2%mV/V |
| Creep(30min) | ≤0.05%F.S. or customized |
| Non-linearity | ≤0.08%F.S. or customized |
| Hysteresis | ≤0.05%F.S. or customized |
| Repeatability | ≤0.05%F.S. or customized |
| Input impedance | 350±5Ω |
| Output impedance | 350±5Ω |
| Temp. effect on output | 0.05%F.S./10°C |
| Temp. effect on zero | 0.05%F.S./10°C |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated Temp Range | -10-60°C |
| Operating Temp Range | -20-80°C |
| Safe overload | 120%F.S. |
| Ultimate overload | 150%F.S. |
| Cable size | ⌀3x3000mm or customized |
| Material | Aluminum alloy |
3. Dimension
4. Application
I. Alternating (direct) current motors, servo motors, stepper motors.
2. Automotive engines, diesel engines, steering gear, overall rigid body twisting, and other parts of the process control and detection.
3. Electric (manual) actuators, automatic opening and closing control of various valves.
4. Oil extraction and refining process control and monitoring, monitoring of thermal (hydro) power generation equipment, ore screening control, and monitoring of wind power generation equipment.
5. A variety of materials torque life test.
5. FAQ
Q1: What are your terms of delivery?
A: EXW, FOB, CFR, and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with a discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has a quality problem within 12 months, please return it to us, and we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation, and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
