Product Details:
|
| Product Name: | Column Type Load Cell | Capacity: | 1,2,5,10,20,50,100,200kN Or Customized |
|---|---|---|---|
| Creep(30min): | ≤0.1%F.S. Or Customized | Non-linearity: | ≤0.1%F.S. Or Customized |
| Hysteresis: | ≤0.1%F.S. Or Customized | Repeatability: | ≤0.05%F.S. Or Customized |
| High Light: | 1kn force measurement transducers,2kn force measurement transducers,5kn high speed load cell |
||
1,2,5,10,20,50,100,200kN Or Customized Column Type Load Cell
1. Descriptions

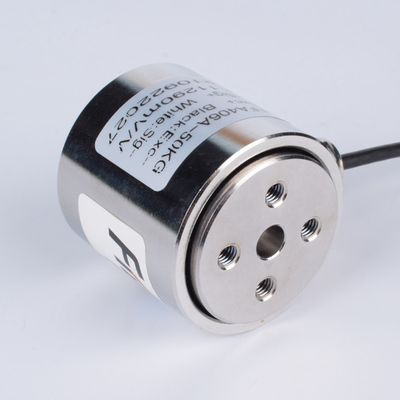

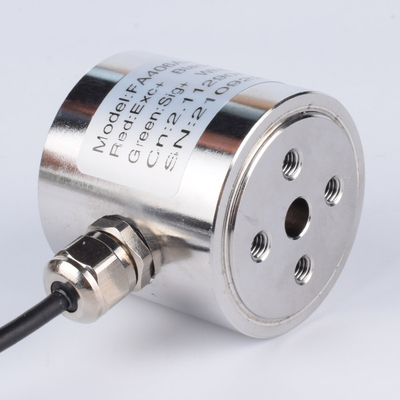

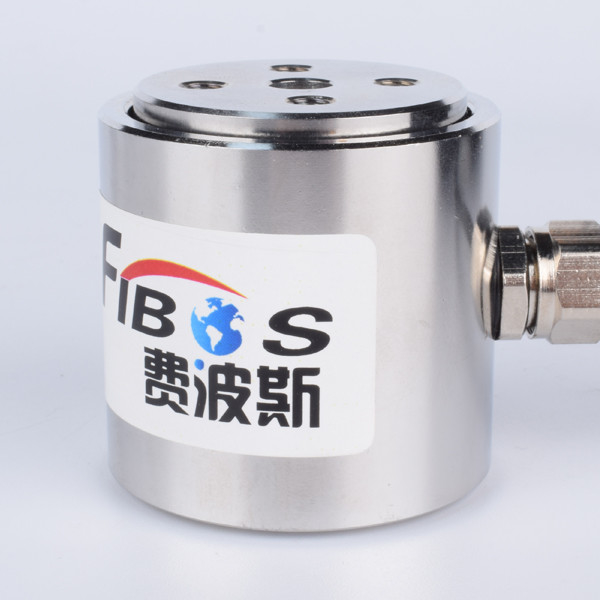

1,2,5,10,20,50,100,200kN Or Customized Column Type Load Cell FA406A is a model of Column Type Load Cell, it belongs to FA406 in our brand FA4-Series, FA406A can be used to measure load 1kN, 2kN, 5kN, 10kN, 20kN, 50kN, 100kN and 200kN capacity, its Creep(30min),Non-linearity and Hysteresis all ≤0.1%F.S. or could be customized, its Cable size is ⌀3x3000mm or customized length.
2. Specifications
| Product name | Tension Compression Force Sensor |
| Capacity | 1,2,5,10,20,50,100,200kN or customized |
| Rated output | 2.0±10%mV/V |
| Zero Balance | ±0.05mV/V |
| Creep(30min) | ≤0.1%F.S. or customized |
| Non-linearity | ≤0.1%F.S. or customized |
| Hysteresis | ≤0.1%F.S. or customized |
| Repeatability | ≤0.05%F.S. or customized |
| Input impedance | 385±10Ω |
| Output impedance | 350±5Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀3x3000mm or customized |
| Weight | 0.3kg or customized |
| Material | Stainless steel or customized |
3. Dimension
Need to be customized
4. Application
1,2,5,10,20,50,100,200kN Or Customized Column Type Load Cell FA406A could be used to measure in silos measuring.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
