Product Details:
|
| Product Name: | Column Type Load Cell | Capacity: | 10000kN Or Customized |
|---|---|---|---|
| Non-linearity: | 0.05%F.S. Or Customized | Repeatability: | 0.05%F.S. Or Customized |
| Cable Size: | ⌀5x4000mm Or Customized | IP Class: | IP66 Or Customized |
| High Light: | FIBOS 0.05 waterproof force sensor,0.05 waterproof force sensor FIBOS,IP66 0.05 waterproof force sensors |
||

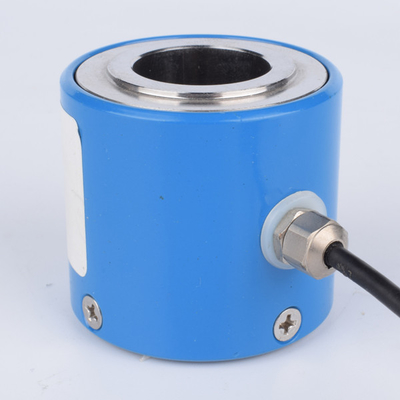

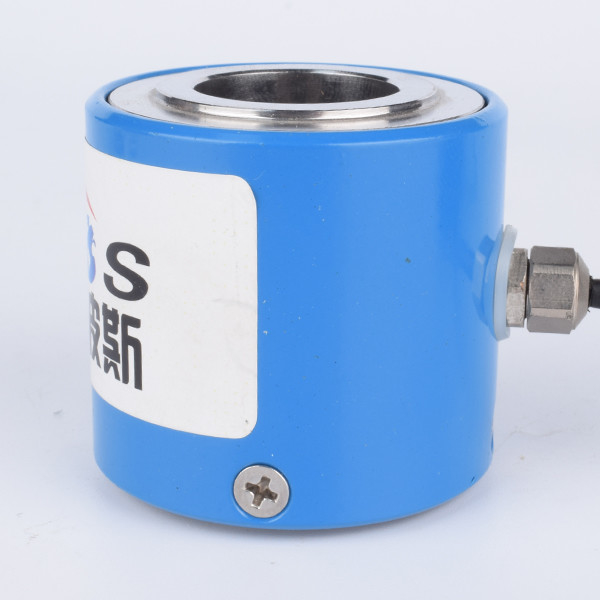

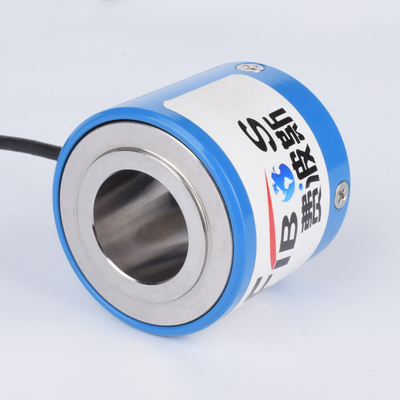

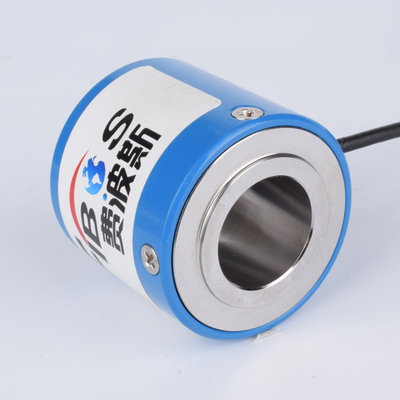

10000kN Or Customized Column Type Load Cell
1. Descriptions
10000kN Or Customized Column Type Load Cell FA438 is one of Column Type Load Cell, it belongs to our brand FIBOS FA4-Series, FA438 can measure load from 500kN to 10000kN or customized capacity, its Non-linearity is 0.05%F.S. or customized, and its Repeatability is 0.02%F.S. or customized, it supports IP66 or customized.
2. Specifications
| Product name | Column Type Load Cell |
| Capacity | 500kN~10000kN or customized |
| Rated output | 2.0±10%mV/V |
| Zero Balance | ±1%mV/V |
| Non-linearity | 0.05%F.S. or customized |
| Repeatability | 0.02%F.S. or customized |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -30~70 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀5x4000mm or customized |
| Material | Alloy Steel or customized |
| IP Class | IP66 or customized |
3. Dimension
Need to be customized
4. Application
10000kN Or Customized Column Type Load Cell could be applied in huge equipment load measuring.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
