Product Details:
|
| Product Name: | Miniature Force Sensor | Capacity: | 100,200,500,1000,2000,5000N Or Customized |
|---|---|---|---|
| Operating Temp Range: | -20~80 ℃ | Cable Size: | ⌀3x4000mm Or Customized |
| Weight: | 0.42kg Or Customized | Material: | Stainless Steel Or Customized |
| High Light: | 1mv/v Miniature Force Sensor,100n Miniature Force Sensor,5000n force transducer load cell |
||

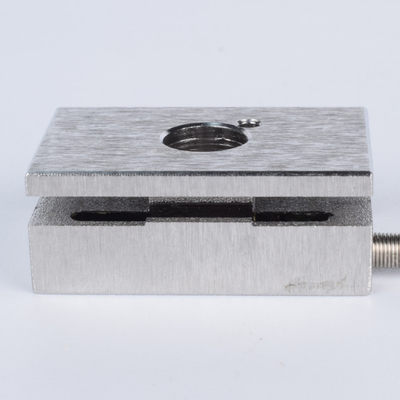

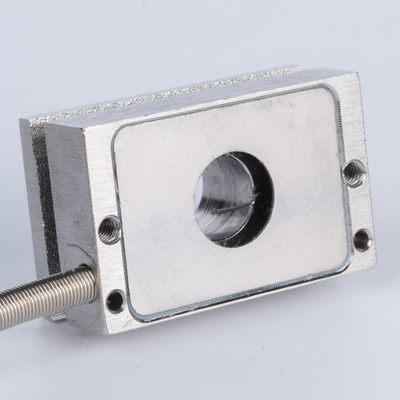

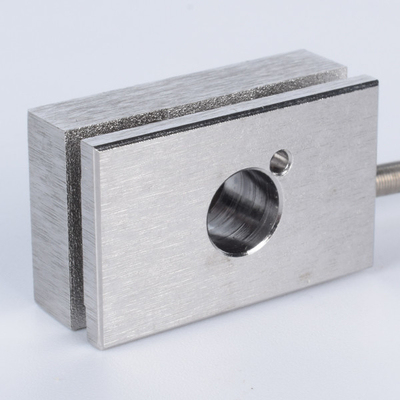

100,200,500,1000,2000,5000N Or Customized Miniature Force Sensor
1. Descriptions
100,200,500,1000,2000,5000N Or Customized Miniature Force Sensor FA131 is a model of our brand FIBOS FA1-Series, Miniature Force Sensor FA131 can be used to measure force 100N,200N,500N,1000N,2000N and 5000N or customized capacity, its Cable size is ⌀3x4000mm or can be customized, its Weight is 0.42kg or can also be customized.
2. Specifications
| Product name | miniature force sensor |
| Capacity | 100,200,500,1000,2000,5000N or customized |
| Rated output | 1.0±20% mV/V |
| Zero balance | ±2%F.S. |
| Creep(30min) | ≤0.5%F.S. or customized |
| Non-linearity | ≤0.5%F.S. or customized |
| Hysteresis | ≤0.2%F.S. or customized |
| Repeatability | ≤0.2%F.S. or customized |
| Input resistance | 600~800Ω |
| Output resistance | 600~800Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~10V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60 ℃ |
| Operating temp range | -20~80 ℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | ⌀3x4000mm or customized |
| Weight | 0.42kg or customized |
| Material | Stainless steel or customized |
3. Dimension
Need to be customized
4. Application
100,200,500,1000,2000,5000N Or Customized Miniature Force Sensor FA131 could be used for kitchen scales.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
