Product Details:
|
| Product Name: | Six Axis Force Sensor | Capacity: | Fx,Fy,Fz=30N; Mx,My,Mz=1.5Nm |
|---|---|---|---|
| Weight: | 0.04kg | Material: | Hard Aluminum Alloy |
| Protection Level: | IP64 | Precision: | 0.1%F.S. |
| High Light: | 0.1% 6 axis load cell,1.5nm 6 axis load cell,1000hz usb force sensor |
||
Fx Fy Fz Each 30N Mx My Mz Each 1.5Nm 0.1%F.S. IP64 Hard Aluminum Alloy Six Axis Force Sensor
1. Descriptions

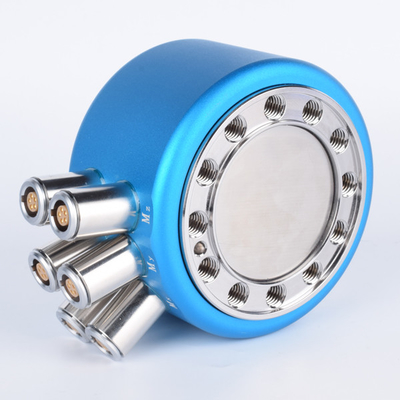

Fx Fy Fz Each 30N Mx My Mz Each 1.5Nm 0.1%F.S. IP64 Hard Aluminum Alloy Six Axis Force Sensor FARS36A is a model from FARS36 which is in six-axis force sensor category. FARS36A can measure 6-axis force Fx,Fy and Fz are 30N, Mx,My and Mz are 1.5Nm, its Diameter is 36mm and Height is 20mm, its weight is 0.04kg.
2. Specifications
| Product name | Six Axis Force Sensor | ||
| Model | FARS36A | ||
| Fx,Fy [N] | 30 | ||
| Fz [N] | 30 | ||
| Mx,My [Nm] | 1.5 | ||
| Mz [Nm] | 1.5 | ||
| Diameter [mm] | 36 | ||
| Height [mm] | 20 | ||
| Material | Hard aluminum alloy | ||
| overload level [%F.S.] | 300 | ||
| Precision [%F.S.] | 0.1 | ||
| Accuracy [%F.S.] | 0.5 | ||
| Weight [kg] | 0.04 | ||
| Supply voltage [VDC] | 9-24 | ||
| working temperature [°C] | 0-80 | ||
| Sampling Resolution [Bit] | 24 | ||
| Sampling frequency [Hz] | 1000 | ||
| Protection level | IP64 | ||
| Communication method | RS422/RS485/MODBUS/CAN/EtherCAT/EtherNET/USB/Analog | ||
| *Some of the parameters are supporting data acquisition equipment parameters. | |||
3. Dimension
4. Application
Fx Fy Fz Each 30N Mx My Mz Each 1.5Nm 0.1%F.S. IP64 Hard Aluminum Alloy Six Axis Force Sensor FARS36A could be used for robots in the service industry.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
