Product Details:
|
| Product Name: | Six Axis Force Sensor | Capacity: | Fx,Fy,Fz=50N; Mx,My,Mz=2Nm |
|---|---|---|---|
| Weight: | 0.05kg | Material: | Hard Aluminum Alloy |
| Protection Level: | IP64 | Precision: | 0.1%F.S. |
| High Light: | rs422 Six Axis Force Sensor,50n Six Axis Force Sensor,9v load cell force gauge |
||
Fx Fy Fz Each 50N Mx My Mz Each 2Nm 0.1%F.S. IP64 Hard Aluminum Alloy Six Axis Force Sensor
1. Descriptions

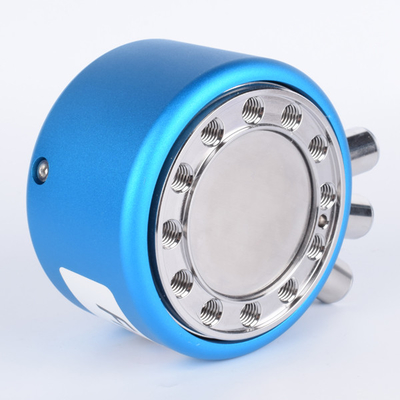

Fx Fy Fz Each 50N Mx My Mz Each 2Nm 0.1%F.S. IP64 Hard Aluminum Alloy Six Axis Force Sensor FARS36B is a model of our brand FIBOS FARS-Series, it belongs to FARS36. FARS36B can measure 6 axis force Fx,Fy and Fz are the same 50N, Mx,My and Mz are 2Nm, its Diameter is 30mm and Height is 20mm, its weight is 0.05kg.
2. Specifications
| Product name | Six Axis Force Sensor | ||
| Model | FARS36B | ||
| Fx,Fy [N] | 50 | ||
| Fz [N] | 50 | ||
| Mx,My [Nm] | 2 | ||
| Mz [Nm] | 2 | ||
| Diameter [mm] | 30 | ||
| Height [mm] | 20 | ||
| Material | Hard aluminum alloy | ||
| overload level [%F.S.] | 300 | ||
| Precision [%F.S.] | 0.1 | ||
| Accuracy [%F.S.] | 0.5 | ||
| Weight [kg] | 0.05 | ||
| Supply voltage [VDC] | 9-24 | ||
| working temperature [°C] | 0-80 | ||
| Sampling Resolution [Bit] | 24 | ||
| Sampling frequency [Hz] | 1000 | ||
| Protection level | IP64 | ||
| Communication method | RS422/RS485/MODBUS/CAN/EtherCAT/EtherNET/USB/Analog | ||
| *Some of the parameters are supporting data acquisition equipment parameters. | |||
3. Dimension
4. Application
Fx Fy Fz Each 50N Mx My Mz Each 2Nm 0.1%F.S. IP64 Hard Aluminum Alloy Six Axis Force Sensor FARS36B could be used for medical robots.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
