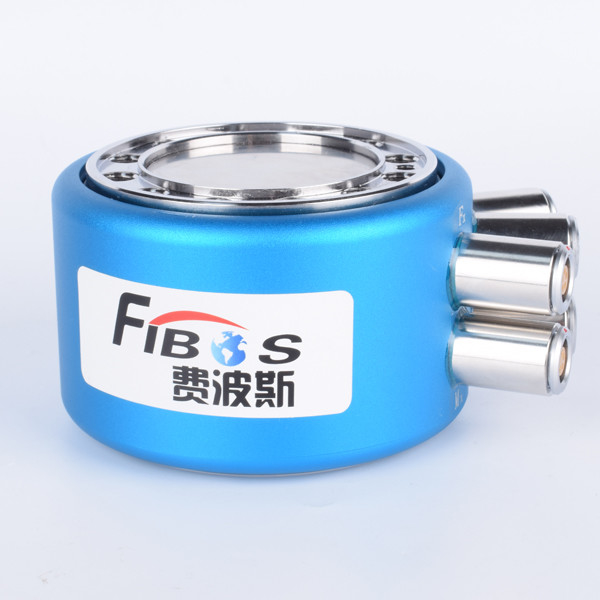

Analog Aluminum 6 Dof Force Sensor 80n Capacitive Load Sensor

Analog Aluminum 6 Dof Force Sensor 80n Capacitive Load Sensor
Analog Aluminum 6 Dof Force Sensor 80n Capacitive Load Sensor

Large Image :  Analog Aluminum 6 Dof Force Sensor 80n Capacitive Load Sensor

Product Details:
Place of Origin: Jiangsu, China
Brand Name: FIBOS
Certification: ISO CE RoHS
Model Number: FARS36C
Payment & Shipping Terms:
Minimum Order Quantity: To Be Negotiated
Price: To Be Negotiated
Packaging Details: 1.Opp bag 2.Custom box 3.According to your request
Delivery Time: 1-7 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 Pieces per Month

Analog Aluminum 6 Dof Force Sensor 80n Capacitive Load Sensor

Description
Product Name: Six Axis Force Sensor Capacity: Fx,Fy,Fz=80N; Mx,My,Mz=3Nm
Weight: 0.06kg Material: Stainless Steel
Diameter: 30mm Height: 20mm
High Light:

analog 6 dof force sensor

,

aluminum 6 dof force sensor

,

80n capacitive load sensor

Fx Fy Fz Each 80N Mx My Mz Each 3Nm 0.1%F.S. IP64 Hard Aluminum Alloy Six Axis Force Sensor



1. Descriptions

Fx Fy Fz Each 80N Mx My Mz Each 3Nm 0.1%F.S. IP64 Hard Aluminum Alloy Six Axis Force Sensor FARS36C is a model of our brand FIBOS FARS-Series, it belongs to FARS36 which is in our six axis force category. FARS36C can be used to measure 6-axis force Fx,Fy and Fz are same 80N, Mx,My and Mz are all the same 3Nm.



2. Specifications



Product name Six Axis Force Sensor
Model FARS36C
Fx,Fy [N] 80
Fz [N] 80
Mx,My [Nm] 3
Mz [Nm] 3
Diameter [mm] 30
Height [mm] 20
Material Hard aluminum alloy
overload level [%F.S.] 300
Precision [%F.S.] 0.1
Accuracy [%F.S.] 0.5
Weight [kg] 0.06
Supply voltage [VDC] 9-24
working temperature [°C] 0-80
Sampling Resolution [Bit] 24
Sampling frequency [Hz] 1000
Protection level IP64
Communication method RS422/RS485/MODBUS/CAN/EtherCAT/EtherNET/USB/Analog
*Some of the parameters are supporting data acquisition equipment parameters.



3. Dimension

Analog Aluminum 6 Dof Force Sensor 80n Capacitive Load Sensor 0



4. Application

Fx Fy Fz Each 80N Mx My Mz Each 3Nm 0.1%F.S. IP64 Hard Aluminum Alloy Six Axis Force Sensor FARS36C could be used for collaborative robots.



5.FAQ

Q1: What is your terms of delivery?

A: EXW, FOB, CFR and CIF.



Q2: Can you produce according to the samples?

A: Yes, we can produce according to your samples or technical drawings.



Q3:What is your sample policy?

A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.



Q4: What's your quality guarantee policy?

A: Quality guarantee: 12 months.

If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.

And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
