Product Details:
|
| Product Name: | Six Axis Force Sensor | Capacity: | Fx,Fy=400N,Fz=500N; Mx,My,Mz=12Nm |
|---|---|---|---|
| Material: | Hard Aluminum Alloy | Protection Level: | IP64 |
| Diameter: | 75mm | Height: | 33.5mm |
| High Light: | 400N 6 dof force torque sensor,aluminum 6 dof force torque sensor,IP64 analog load cell |
||
Fx Fy 400N Fz 500N Mx My Mz 12Nm IP64 Hard Aluminum Alloy Six Axis Force Sensor
1. Descriptions

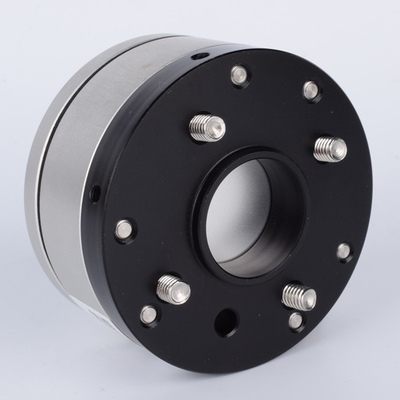

Fx Fy 400N Fz 500N Mx My Mz 12Nm IP64 Hard Aluminum Alloy Six Axis Force Sensor FARS75C is a model of our brand FIBOS FARS-Series, it belongs to FARS75. FARS75C can be used to measure 6 axis force Fx and Fy are 400N, Fz is 500N, Mx,My and Mz are 12Nm, its Diameter is 75mm and Height is 33.5mm, its weight is 0.36kg.
2. Specifications
| Product name | Six Axis Force Sensor | ||||
| Model | FARS75C | ||||
| Fx, Fy [N] | 400 | ||||
| Fz [N] | 500 | ||||
| Mx,My[Nm] | 12 | ||||
| Mz [Nm] | 12 | ||||
| Diameter [mm] | 75 | ||||
| Height [mm] | 33.5 | ||||
| Material | Hard aluminum alloy | ||||
| Overload Level[%F.S.] | 300 | ||||
| Precision [%F.S.] | 0.1 | ||||
| Accuracy [%F.S.] | 0.5 | ||||
| Weight [kg] | 0.36 | ||||
| Supply voltage [VDC] | 9-24 | ||||
| Working Temperature[℃] | 0-80 | ||||
| Sampling Resolution [Bit] | 24 | ||||
| Sampling Frequency [Hz] | 1000 | ||||
| Protection Level | IP64 | ||||
| Communication Method | RS422/RS485/MODBUS/CAN/EtherCAT/EtherNET/USB/Analog | ||||
3. Dimension
4. Application
Fx Fy 400N Fz 500N Mx My Mz 12Nm IP64 Hard Aluminum Alloy Six Axis Force Sensor FARS75C could be used for vehicle test bench instrumentation in the automotive industry.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
