Product Details:
|
| Product Name: | Six Axis Force Sensor | Capacity: | Fx,Fy=500N,Fz=700N; Mx,My,Mz=18Nm |
|---|---|---|---|
| Material: | Hard Aluminum Alloy | Protection Level: | IP64 |
| Diameter: | 75mm | Height: | 33.5mm |
| High Light: | aluminum 6 axis force torque sensor,500n 6 axis force torque sensor,700n axial load cell |
||

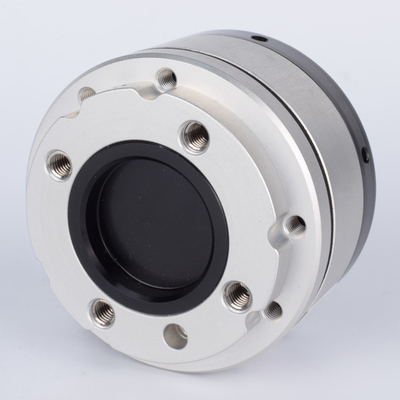

Fx Fy 500N Fz 700N Mx My Mz 18Nm Hard Aluminum Alloy Six Axis Force Sensor
1. Descriptions
Fx Fy 500N Fz 700N Mx My Mz 18Nm Hard Aluminum Alloy Six Axis Force Sensor FARS75D is a model of our brand FIBOS FARS-Series, it belongs to FARS75 with higher height 33.5mm but same diameter 75mm, FARS75D can be used to measure 6 axis force Fx and Fy are 500N, Fz is 700N, Mx,My and Mz are 18Nm, its weight is 0.36kg.
2. Specifications
| Product name | Six Axis Force Sensor | ||||
| Model | FARS75D | ||||
| Fx, Fy [N] | 500 | ||||
| Fz [N] | 700 | ||||
| Mx,My[Nm] | 18 | ||||
| Mz [Nm] | 18 | ||||
| Diameter [mm] | 75 | ||||
| Height [mm] | 33.5 | ||||
| Material | Hard aluminum alloy | ||||
| Overload Level[%F.S.] | 300 | ||||
| Precision [%F.S.] | 0.1 | ||||
| Accuracy [%F.S.] | 0.5 | ||||
| Weight [kg] | 0.36 | ||||
| Supply voltage [VDC] | 9-24 | ||||
| Working Temperature[℃] | 0-80 | ||||
| Sampling Resolution [Bit] | 24 | ||||
| Sampling Frequency [Hz] | 1000 | ||||
| Protection Level | IP64 | ||||
| Communication Method | RS422/RS485/MODBUS/CAN/EtherCAT/EtherNET/USB/Analog | ||||
3. Dimension
4. Application
Fx Fy 500N Fz 700N Mx My Mz 18Nm Hard Aluminum Alloy Six Axis Force Sensor FARS75D could be used for pilot ergonomics studies in the aerospace industry.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
