Product Details:
|
| Product Name: | Six Axis Force Sensor | Capacity: | Fx,Fy,Fz=50N; Mx,My,Mz=2Nm |
|---|---|---|---|
| Precision: | 0.1%F.S. | Weight: | 0.26kg |
| Diameter: | 82mm | Height: | 31.5mm |
| High Light: | analog Six Axis Force Sensor,rs485 Six Axis Force Sensor,2nm load cell pressure sensor |
||

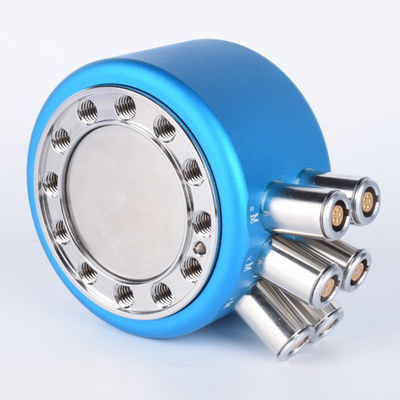

Fx Fy Fz 50N Mx My Mz 2Nm 0.1%F.S. Hard Aluminum Alloy Six Axis Force Sensor
1. Descriptions
Fx Fy Fz 50N Mx My Mz 2Nm 0.1%F.S. Hard Aluminum Alloy Six Axis Force Sensor FARS82A is a model of our FIBOS FARS-Series, it belongs to FARS82 which is its mother model, FARS82A can be used to measure 6-axis force Fx,Fy,Fz are same 50N, and Mx,My,Mz are same 2Nm, its weight is 0.26kg, it has very similar shape with FARS82.
2. Specifications
| Product name | Six Axis Force Sensor | ||||
| Model | FARS82A | ||||
| Fx, Fy [N] | 50 | ||||
| Fz [N] | 50 | ||||
| Mx,My[Nm] | 2 | ||||
| Mz [Nm] | 2 | ||||
| Diameter [mm] | 82 | ||||
| Height [mm] | 31.5 | ||||
| Material | Hard aluminum alloy | ||||
| Overload Level[%F.S.] | 300 | ||||
| Precision [%F.S.] | 0.1 | ||||
| Accuracy [%F.S.] | 0.5 | ||||
| Weight [kg] | 0.26 | ||||
| Supply voltage [VDC] | 9-24 | ||||
| Working Temperature[℃] | 0-80 | ||||
| Sampling Resolution [Bit] | 24 | ||||
| Sampling Frequency [Hz] | 1000 | ||||
| Protection Level | IP64 | ||||
| Communication Method | RS422/RS485/MODBUS/CAN/EtherCAT/EtherNET/USB/Analog | ||||
3. Dimension
4. Application
Fx Fy Fz 50N Mx My Mz 2Nm 0.1%F.S. Hard Aluminum Alloy Six Axis Force Sensor FARS82A can be used for control surface measurements in the aerospace industry.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
