Product Details:
|
| Product Name: | Six Axis Force Sensor | Capacity: | Fx,Fy,Fz=200N; Mx,My,Mz=8Nm |
|---|---|---|---|
| Weight: | 0.28kg | Material: | Hard Aluminum Alloy |
| Diameter: | 82mm | Height: | 31.5mm |
| High Light: | ip64 high precision load cell,8nm high precision load cell,200n aluminium alloy load cell |
||

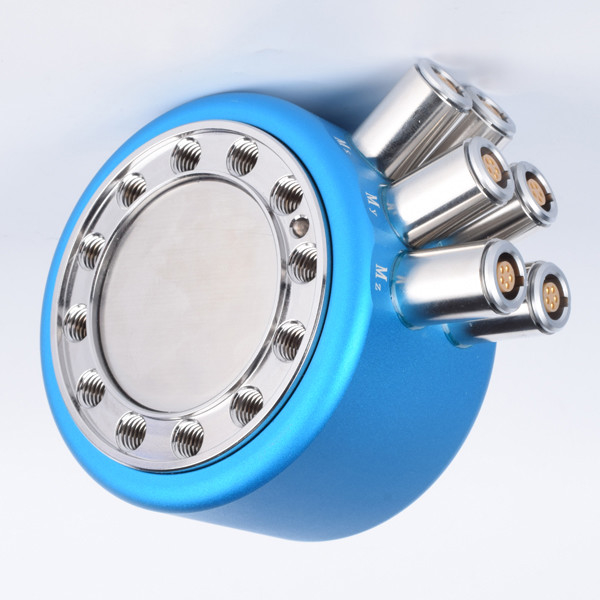

Fx Fy Fz 200N Mx My Mz 8Nm Hard Aluminum Alloy Six Axis Force Sensor
1. Descriptions
Fx Fy Fz 200N Mx My Mz 8Nm Hard Aluminum Alloy Six Axis Force Sensor FARS82B is a model from FARS82 which belongs to our brand FIBOS FARS-Series, FARS82B can be used to measure six-axis force Fx,Fy,Fz all are same 200N, Mx,My,Mz are same 8Nm, its Diameter is 82mm and Height is 31.5mm, its weight is 0.28kg.
2. Specifications
| Product name | Six Axis Force Sensor | ||||
| Model | FARS82B | ||||
| Fx, Fy [N] | 200 | ||||
| Fz [N] | 200 | ||||
| Mx,My [Nm] | 8 | ||||
| Mz [Nm] | 8 | ||||
| Diameter [mm] | 82 | ||||
| Height [mm] | 31.5 | ||||
| Material | Hard aluminum alloy | ||||
| Overload Level[%F.S.] | 300 | ||||
| Precision [%F.S.] | 0.1 | ||||
| Accuracy [%F.S.] | 0.5 | ||||
| Weight [kg] | 0.28 | ||||
| Supply voltage [VDC] | 9-24 | ||||
| Working Temperature[℃] | 0-80 | ||||
| Sampling Resolution [Bit] | 24 | ||||
| Sampling Frequency [Hz] | 1000 | ||||
| Protection Level | IP64 | ||||
| Communication Method | RS422/RS485/MODBUS/CAN/EtherCAT/EtherNET/USB/Analog | ||||
3. Dimension
4. Application
Fx Fy Fz 200N Mx My Mz 8Nm Hard Aluminum Alloy Six Axis Force Sensor FARS82B could also be mainly applied in aerospace industry.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
