Product Details:
|
| Product Name: | Six Axis Force Sensor | Capacity: | Fx,Fy=500N,Fz=700N; Mx,My,Mz=18Nm |
|---|---|---|---|
| Weight: | 0.36kg | Material: | Hard Aluminum Alloy |
| Diameter: | 82mm | Height: | 33.5mm |
| High Light: | 1000hz axial force sensors,500n axial force sensors,700n high resolution force sensor |
||
Fx Fy 500N Fz 700N Mx My Mz 18Nm Hard Aluminum Alloy Six Axis Force Sensor
1. Descriptions

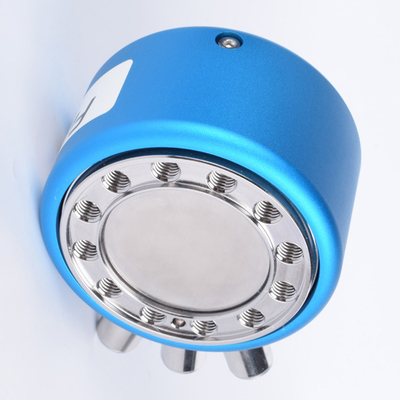

Fx Fy 500N Fz 700N Mx My Mz 18Nm Hard Aluminum Alloy Six Axis Force Sensor FARS82D is a model from FARS82 which belongs to our brand FIBOS FARS-Series, FARS82D can be used to measure six axis force Fx,Fy are both 500N, Fz is 700N, and Mx,My,Mz are all 18Nm, its weight is 0.36kg, it's heavier than FARS82.
2. Specifications
| Product name | Six Axis Force Sensor | ||||
| Model | FARS82D | ||||
| Fx, Fy [N] | 500 | ||||
| Fz [N] | 700 | ||||
| Mx,My [Nm] | 18 | ||||
| Mz [Nm] | 18 | ||||
| Diameter [mm] | 82 | ||||
| Height [mm] | 33.5 | ||||
| Material | Hard aluminum alloy | ||||
| Overload Level [%F.S.] | 300 | ||||
| Precision [%F.S.] | 0.1 | ||||
| Accuracy [%F.S.] | 0.5 | ||||
| Weight [kg] | 0.36 | ||||
| Supply voltage [VDC] | 9-24 | ||||
| Working Temperature[℃] | 0-80 | ||||
| Sampling Resolution [Bit] | 24 | ||||
| Sampling Frequency [Hz] | 1000 | ||||
| Protection Level | IP64 | ||||
| Communication Method | RS422/RS485/MODBUS/CAN/EtherCAT/EtherNET/USB/Analog | ||||
3. Dimension
4. Application
Fx Fy 500N Fz 700N Mx My Mz 18Nm Hard Aluminum Alloy Six Axis Force Sensor FARS82D could be applied in Automotive Tire Performance Study.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
