Product Details:
|
| Product Name: | Six Axis Force Sensor | Capacity: | Fx,Fy,Fz=30N; Mx,My,Mz=1.5Nm |
|---|---|---|---|
| Weight: | 0.26kg | Material: | Hard Aluminum Alloy |
| Working Temperature: | 0-80℃ | Sampling Resolution: | 24Bit |
| High Light: | usb Six Axis Force Sensor,ethercat Six Axis Force Sensor,30n load cell weighing system |
||

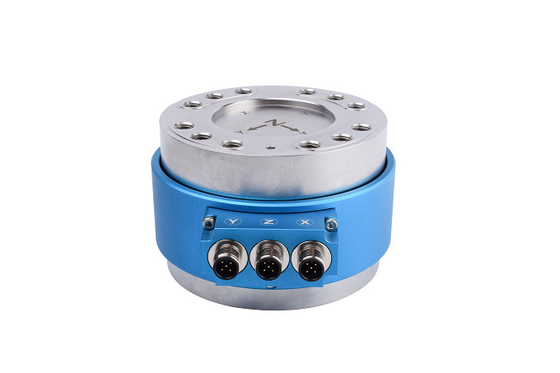

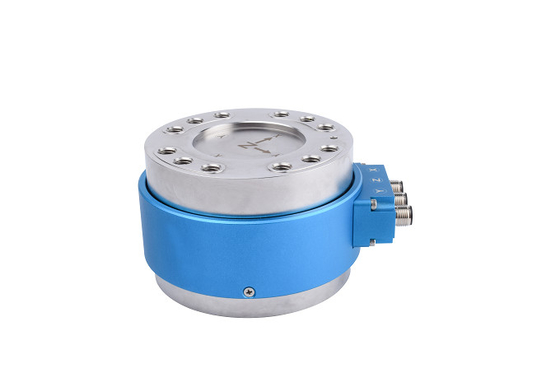

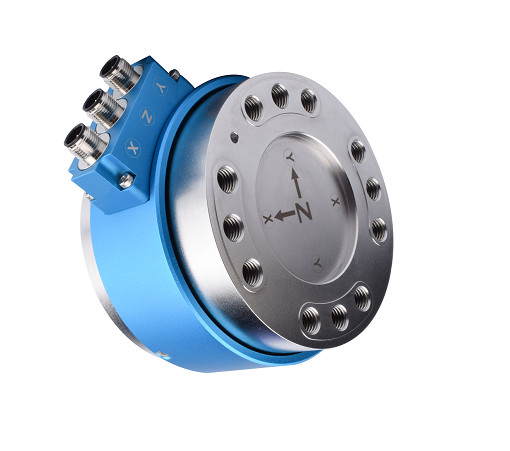

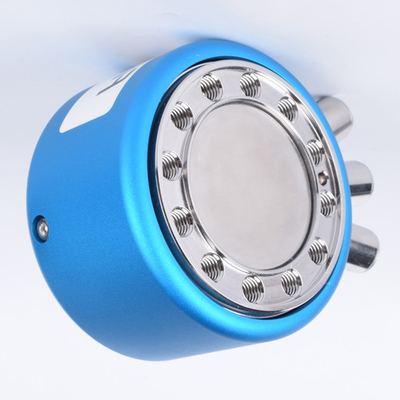

Fx Fy Fz 30N Mx My Mz 1.5Nm Hard Aluminum Alloy Six Axis Force Sensor
1. Descriptions
Fx Fy Fz 30N Mx My Mz 1.5Nm Hard Aluminum Alloy Six Axis Force Sensor FARS82E is a model of FARS82 which belongs to our brand FIBOS FARS-Series, FARS82E can be used to measure 6 axis force Fx,Fy,Fz are 30N and Mx,My,Mz are the same 1.5Nm, its weight is 0.26kg, it's higher than FARS82. It has nearly same Shape with FARS82.
2. Specifications
| Product name | Six Axis Force Sensor | ||||
| Model | FARS82E | ||||
| Fx, Fy [N] | 30 | ||||
| Fz [N] | 30 | ||||
| Mx,My[Nm] | 1.5 | ||||
| Mz [Nm] | 1.5 | ||||
| Diameter [mm] | 82 | ||||
| Height [mm] | 31.5 | ||||
| Material | Hard aluminum alloy | ||||
| Overload Level[%F.S.] | 300 | ||||
| Precision [%F.S.] | 0.1 | ||||
| Accuracy [%F.S.] | 0.5 | ||||
| Weight [kg] | 0.26 | ||||
| Supply voltage [VDC] | 9-24 | ||||
| Working Temperature[℃] | 0-80 | ||||
| Sampling Resolution [Bit] | 24 | ||||
| Sampling Frequency [Hz] | 1000 | ||||
| Protection Level | IP64 | ||||
| Communication Method | RS422/RS485/MODBUS/CAN/EtherCAT/EtherNET/USB/Analog | ||||
3. Dimension
4. Application
Fx Fy Fz 30N Mx My Mz 1.5Nm Hard Aluminum Alloy Six Axis Force Sensor FARS82E can be mainly applied in automatic industry such like FARS82.
