Product Details:
|
| Product Name: | Six Axis Force Sensor | Capacity: | Fx,Fy,Fz=200N; Mx,My,Mz=8Nm |
|---|---|---|---|
| Weight: | 0.18kg | Material: | Hard Aluminum Alloy |
| Diameter: | 62mm | Height: | 18mm |
| High Light: | 200n Six Axis Force Sensor,300% Six Axis Force Sensor,rs422 aluminium load cell |
||

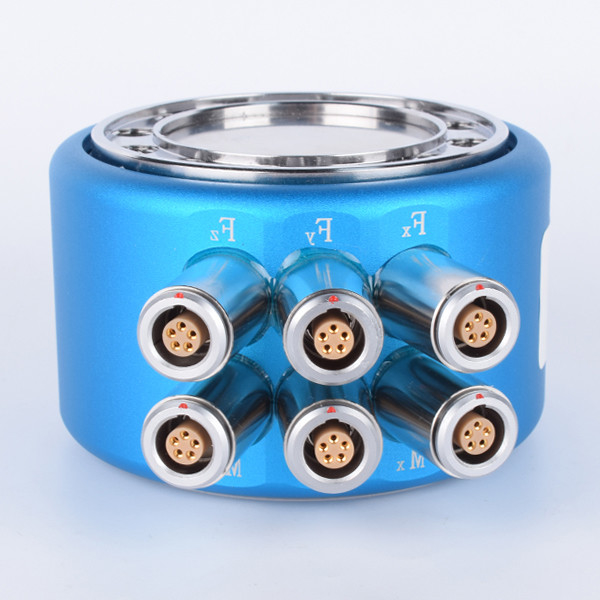

Fx Fy Fz 200N Mx My Mz 8Nm Hard Aluminum Alloy Six Axis Force Sensor
1. Descriptions
Fx Fy Fz 200N Mx My Mz 8Nm Hard Aluminum Alloy Six Axis Force Sensor FARS62D is a model of Six Axis Force Sensor, it belongs to FARS62 in our brand FIBOS FARS-Series, it can measure multi-axis load Fx,Fy,Fz all are 200N, and Mx,My,Mz all are 8Nm, its Diameter is 62mm and Height is 18mm, its weight is 0.18kg.
2. Specifications
| Product name | Six Axis Force Sensor | ||||
| Model | FARS62D | ||||
| Fx, Fy [N] | 200 | ||||
| Fz [N] | 200 | ||||
| Mx,My[Nm] | 8 | ||||
| Mz [Nm] | 8 | ||||
| Diameter [mm] | 62 | ||||
| Height [mm] | 18 | ||||
| Material | Hard aluminum alloy | ||||
| Overload Level[%F.S.] | 300 | ||||
| Precision [%F.S.] | 0.1 | ||||
| Accuracy [%F.S.] | 0.5 | ||||
| Weight [kg] | 0.18 | ||||
| Supply voltage [VDC] | 9-24 | ||||
| Working Temperature[℃] | 0-80 | ||||
| Sampling Resolution [Bit] | 24 | ||||
| Sampling Frequency [Hz] | 1000 | ||||
| Protection Level | IP64 | ||||
| Communication Method | RS422/RS485/MODBUS/CAN/EtherCAT/EtherNET/USB/Analog | ||||
3. Dimension
4. Application
Fx Fy Fz 200N Mx My Mz 8Nm Hard Aluminum Alloy Six Axis Force Sensor FARS62D can be applied on robotic arms of robots.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
